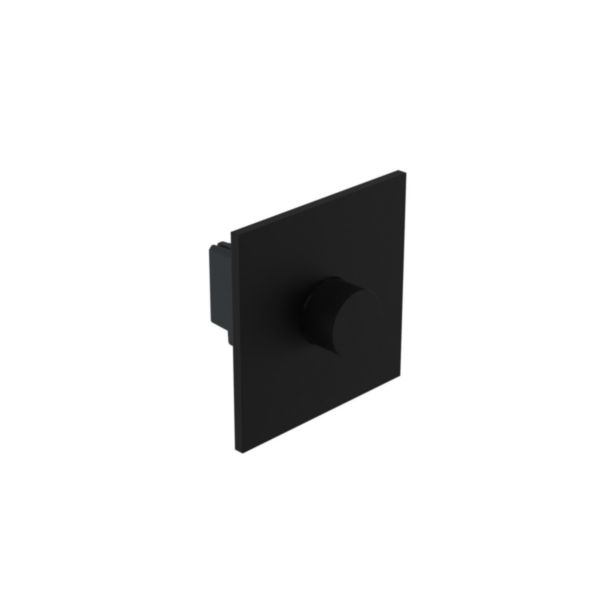

Art d'Arnould - 1 gang rotary universal dimmer 2 way push Epure - Matt Black

Art d'Arnould LEGRAND

Art d'Arnould - 1 gang rotary universal dimmer 2 way push Epure - Matt Black

REF. AR-68404 76 EAN. 3233625160553

1 gang rotary universal dimmer 2 way push British Standard -Epure matt black

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

1 gang rotary universal dimmer 2 way push British Standard -Epure matt black

Product characteristics
  • Perfectly adapting to the spirit and use of the place, this function offers architects and decorators the means to shape, design, and model spaces
  • Black toggle
  • Colors and appearances may vary from one plate to another due to their handcrafted manufacturing
  • Mounted in a flush-mounted box according to your wall type and the number of functions in your installation
Recommendation / Restriction
  • It is recommended to install the plates only after the wall coatings have been completely finished (paint, fabrics, etc.). Indoor use only

The product's benefits

Avantages
  • Expertly handcrafted
  • Made from solid, genuine brass

Technical characteristics

Assembly arrangement Basic element with full cover plate
Method of operation Turn/push button
App control via Bluetooth No
Serial dimmer No
Type of load Universal and LED Retrofit
Substation input Yes
Light value memory Yes
Applicable with button Yes
Applicable with movement sensor No
Applicable with presence indicator No
Applicable with time switch/timer No
Applicable with transmission button No
Applicable with infrared button No
Mounting method Flush-mounted
Type of fastening Mounting with screw
Material Metal
Material quality Stainless steel
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Colour Black
Transparent No
Suitable for degree of protection (IP) IP21
degree of impact strength (IK) IK02
Nominal voltage (Min-Max) 100-240 V
Frequency (Min-Max) 50-60 Hz
Connection type Screwed terminal
Device width 86 mm
Device height 86 mm
Device depth 59 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 40 mm
Operating / setting temperature (Min-Max) 0-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Terminal marking indication Yes
Antimicrobial treatment No
Terminals capacity (Min-Max) 2.5-2.5 mm²
Cable nature for connection Flexible or rigid

Documentation

2 documents
Instruction Use
LE12143AB.pdf pdf (0.37 Mo)
Technical Sheet
F03067EN-00.pdf pdf (0.26 Mo)
1 document
Catalogue Commercial Page
ex223001_0714.pdf pdf (0.08 Mo)
