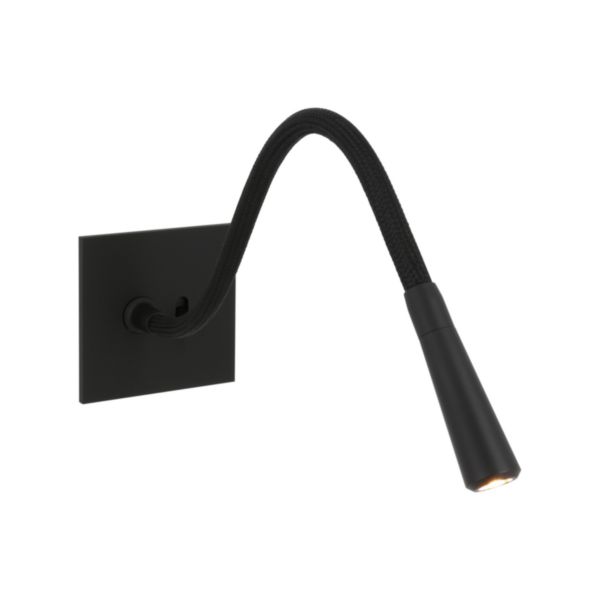

Art d'Arnould - 1 gang reading light + switch single pole Epure - Matt Black

Art d'Arnould LEGRAND

Art d'Arnould - 1 gang reading light + switch single pole Epure - Matt Black

REF. AR-68481 76 EAN. 3414971975712

1 gang reading light + switch single pole British Standard -Epure matt black

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

1 gang reading light + switch single pole British Standard -Epure matt black

Product characteristics
  • Perfectly adapting to the spirit and use of the place, this function offers architects and decorators the means to shape, design, and model spaces
  • Black toggle
  • Colors and appearances may vary from one plate to another due to their handcrafted manufacturing
  • Mounted in a flush-mounted box according to your wall type and the number of functions in your installation
Recommendation / Restriction
  • It is recommended to install the plates only after the wall coatings have been completely finished (paint, fabrics, etc.). Indoor use only

The product's benefits

Avantages
  • Expertly handcrafted
  • Made from solid, genuine brass

Technical characteristics

Suitable for wall mounting Yes
Suitable for suspended mounting No
Suitable for ceiling mounting No
Suitable for built-in mounting Yes
Suitable for surface mounting No
Suitable for light line configuration No
Suitable for workplace according to EN 12464-1 No
Lamp type LED not exchangeable
With light source Yes
Lamp holder Other
Housing material Other
Housing colour Black
Material cover Without cover
Type of grid Other
Voltage type AC
Nominal voltage (Min-Max) 110-250 V
Type of control gear LED operating device voltage-controlled
With control gear No
Dimmable No
Dimming 0-10 V No
Dimming 1-10 V No
Dimming DALI No
Dimming DSI No
Dimming mains voltage modulation No
Dimming phase cut-off (trailing edge) No
Dimming phase cut-on (leading edge) No
Dimming programmable No
Dimming potentiometer (integrated) No
Dimming RF No
Dimming Touch and Dim No
Dimming Zigbee No
Dimming with push-button No
Light distribution Asymmetric
Beam angle Open beam/diffuse
Light outlet Direct
Degree of protection (IP), rear side IP20
degree of impact strength (IK) IK02
Protection class according to IEC 61140 II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 No
Rated ambient temperature according to IEC 62722-2-1 (Min-Max) -5-25 °C
Luminous flux in emergency mode 110 lm
Suitable for emergency lighting No
With movement sensor No
With light sensor No
Covering of the luminaire with thermally insulating material possible No
With air slots No
Suitable for lamp power (Min-Max) 1-1 W
Luminaire efficacy (Min-Max) 0-0 lm/W
Rated luminous flux according to IEC 62722-2- 1 (Min-Max) 110-110 lm
Colour of light White
Colour temperature (Min-Max) 3000-3000 K
Width 86 mm
Height/depth 393 mm
Length 393 mm
Built-in length 39 mm
Built-in width 86 mm
Built-in height/depth 39 mm
Conductor cross section 1.5 mm²
Connection type Screwed terminal
Connectable conductor cross section (Min-Max) 1.5-15 mm²
Luminous intensity (Min-Max) 0-0 cd
Operation by Bluetooth No
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-25 °C
Storage temperature (Min-Max) -10-70 °C
Frequency (Min-Max) 50-60 Hz
Estimated bulb life 40000 h
Halogen free Yes
Antimicrobial treatment No
Cable nature for connection Flexible or rigid
With socket outlet No
Fitted with rainproof plate protection No
With complemantary luminous signal No
Supplied remote control No
Auto switch No
Control mode Wired
Connected object No

Documentation

2 documents
Instruction Use
LE09686BA.pdf pdf (0.19 Mo)
Technical Sheet
F03094EN-00.pdf pdf (0.16 Mo)
1 document
Catalogue Commercial Page
ex223001_0715.pdf pdf (0.08 Mo)
1 document
Agreement
OC / CB-FR_719989 (0.92 Mo)
