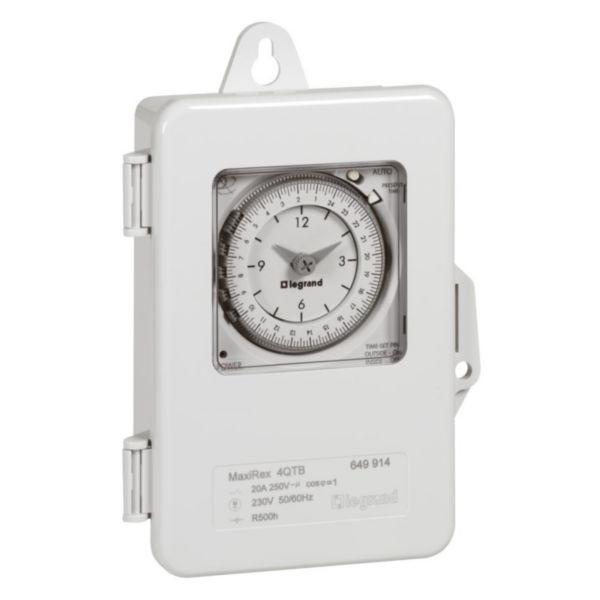

Analogue time switch - daily programme - 20 A 250 V~

LEGRAND

Analogue time switch - daily programme - 20 A 250 V~

REF. 649914 EAN. 3245066499147
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Analogue time switches - Power supply 230 V~ - Override switching "ON" or "OFF" in front face - 1 output via changeover contact - (2 changeover contacts for Cat.No 0 499 26)
  • Daily programme20 A - 250 V~ - μ cos Ï = 1 - Shortest switching time : 30 minutes - (1 segment = 10 minutes) - Switching accuracy : + 5 minutes - Shortest switching time : 30 minutes - (1 segment = 10 minutes) - Switching accuracy : + 5 minutes

Technical characteristics

Mounting method Other
Number of channels 1
Supply voltage (Min-Max) 120-120 V
Voltage type (supply voltage) AC
Frequency supply voltage (Min-Max) 60-60 Hz
Autonomy in hours 500
Accuracy per day 1 s
60 min program No
24 h program Yes
Weekly program No
Annual program No
Mains synchronous No
Quartz controlled Yes
Shortest switching time channel 1 20 min
Program shift divide 1 10 min
Automatic switching summer/winter time No
Suitable for manual operation Yes
Switching preselection No
Nominal switching current at 250 V AC 20 A
Potential free switch contact Yes
Degree of protection (IP) IP65
Width 119.5 mm
Height 161 mm
Depth 51 mm
Contains Batteries and/or Accumulator Yes
IEC code (Pack1) V150H
Battery ou Accumulator (Pack1) Accumulator (rechargeable)
Element Composition (Pack1) Nickel metal hydride
Number of Pack 1 1
Number of Single Element (Pack1) 1
Single Element weight (Pack1) 6 g
Pack1 Location Product includes a battery
Regulation Type (Pack1) P : Portable (Standard format)
