Analogue audio Kit with Sprint and Linea 2000 one family kit

Name: Analogue audio Kit with Sprint and Linea 2000 one family kit
SKU: BT-363211

Sprint BTICINO

REF. BT-363211 EAN. 8012199527017

Compare You can only compare 4 products, you must remove 1 to add this one

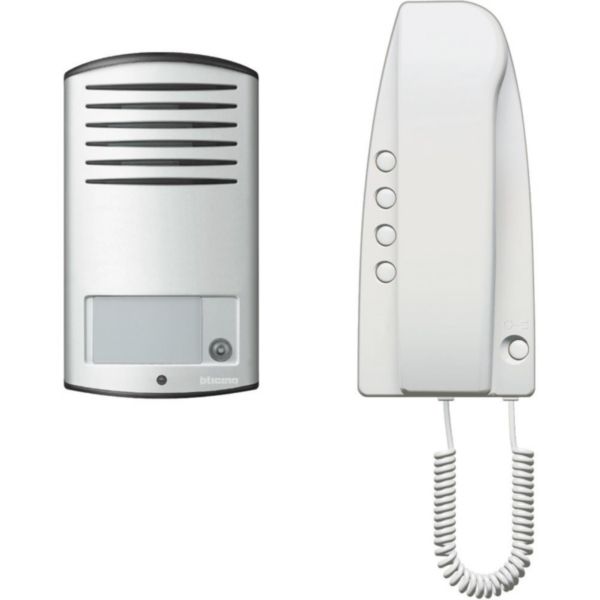

Sprint audio handset with door lock release pushbutton
Linea 2000 audio pushbutton panel with 1 call pushbutton for wall mounted installation
Aluminium front cover. Nameplate lit by green LED
Do not need any accessory for installation on the wall

With video	No
Number of indoor stations	1
Number of outdoor stations	1
Number of call buttons	1
Installation technique	Multi-wire system
Mounting method indoor station	Flush-mounted
Colour indoor station	White
Mounting method outdoor station	Flush-mounted
Material outdoor station	Aluminium
Colour outdoor station	Grey
Expandable to max. number of indoor stations	3
Expandable to max. number of outdoor stations	0
Picture system	PAL
Can be connected to smartphone	No
Internal communication	No
Hands free	No
With day/night function	No
Zoom, pan/tilt function	No
With memory function	No
Manual adjustable camera	No
Label space/information surface	Yes
Hearing aid compatible	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Width	90 mm
Height	200 mm
Depth	60 mm
degree of impact strength (IK)	IK07
Degree of protection (IP)	IP54
Operating / setting temperature (Min-Max)	-20-55 °C
Storage temperature (Min-Max)	-25-70 °C

Voltage type	AC/DC
Nominal voltage (Min-Max)	12-270 V
Supply current (Min-Max)	0.25-4 A
Frequency (Min-Max)	50-60 Hz
Sound level	82 dB
Standby consumption	250 mA
Halogen free	Yes
Antimicrobial treatment	No
Cable nature for connection	Flexible
Cable section (Min-Max)	0.28-1.5 mm²
Fitted with USB plug	No
Fitted with rainproof plate protection	Yes
With complemantary luminous signal	No
Mounting method	Surface mounted/recessed mounted
Control mode	Wired
Contains Batteries and/or Accumulator	No
Additional unit	Yes
Loudness setting	Yes
Addressable	No
Door entry system with mobile application	No
Number of ringtones	16
Remote opening of gate / Electric door opener	Yes
Screen resolution	Not applicable
Screen brightness setting	No
Screen contrast setting	No
Memory video function	No
Camera type	Not applicable
Communication rank type	Other
IEC code (Pack1)	Not applicable
Battery ou Accumulator (Pack1)	Not applicable
Element Composition (Pack1)	Not applicable
Connected object	No

1 document

Select all

Instruction Use

T5254F.pdf pdf (5.68 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0857.pdf pdf (0.05 Mo)

1 document

Select all

PEP

LGRP-00433-V01.01-EN.pdf pdf (1 Mo)
