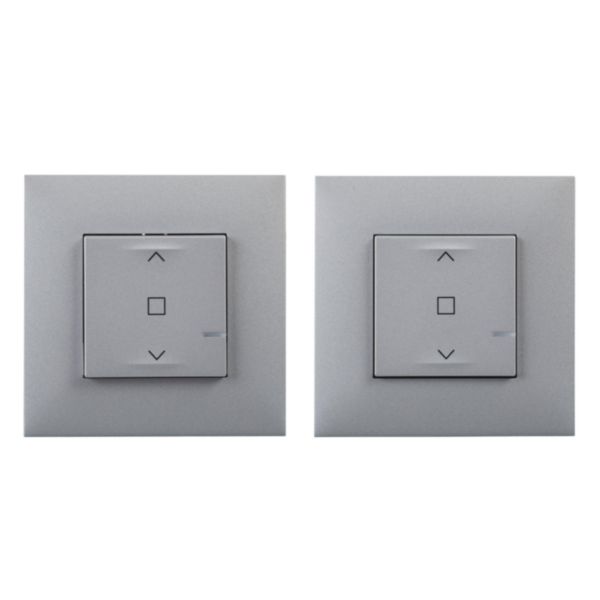

All-in-one kit containing a roller shutter switch + roller shutter wireless switch Valena Next with Netatmo

Name: All-in-one kit containing a roller shutter switch + roller shutter wireless switch Valena Next with Netatmo
SKU: 741856

Valena Next Legrand

REF. 741856 EAN. 3414971404236

Compare You can only compare 4 products, you must remove 1 to add this one

Bus system KNX	No
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	Yes
Bus system LON	No
Bus system Powernet	No
Other bus systems	Zigbee
Radio frequency bidirectional	Yes
Mounting method	Flush-mounted
With bus connection	No
Bus module detachable	No
Local operation/hand operation	Yes
With LED indication	Yes
Number of inputs	4
Switching current (resistive)	2 A
Max. switching power	500 W
Max. number of venetian-blind outputs	1
With switch function	Yes
Type of current	AC
Degree of protection (IP)	IP41
Min. depth of built-in installation box	40 mm
degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	5-45 °C
Storage temperature (Min-Max)	0-45 °C
Nominal voltage (Min-Max)	100-240 V
Frequency (Min-Max)	50-60 Hz
Standby consumption	0.1 mA
Mandatory neutral	Yes
Terminal marking indication	Yes

Stress test conformity (1000V)	No
Colour	Aluminium
Halogen free	Yes
Antimicrobial treatment	No
Connection type	Screwed terminal
Number of terminals	4
Terminals capacity (Min-Max)	1.5-2.5 mm²
Contains Batteries and/or Accumulator	Yes
IEC code (Pack1)	CR2032
Battery ou Accumulator (Pack1)	Battery (not rechargeable)
Element Composition (Pack1)	Lithium (battery or accumulator)
Number of Pack 1	1
Number of Single Element (Pack1)	1
Single Element weight (Pack1)	3 g
Pack1 Location	Product includes a battery
Regulation Type (Pack1)	P : Portable (Standard format)
Connected object	Yes
Operating method	Zigbee
Application store for download	App Store , Google Play Store
With voice command	Yes
Programmable	Yes
Interoperable connection Protocol	Yes
Connectable by Internet box	Yes
Compatible voice assistants	Google Assistant , Amazon Alexa , Apple Siri
Product use function	Shutter management
Application name	Home + Control
Programming way	Smartphone apps

1 document

Select all

Instruction Use

LE11254_BE.pdf pdf (3.68 Mo)

3 documents

Select all

Agreement

Decl. UE RED-A 3784 B (0.21 Mo)

Agreement

CEBEC-21532 (0.72 Mo)

Agreement

OC / CB-FR_706899 (0.55 Mo)
