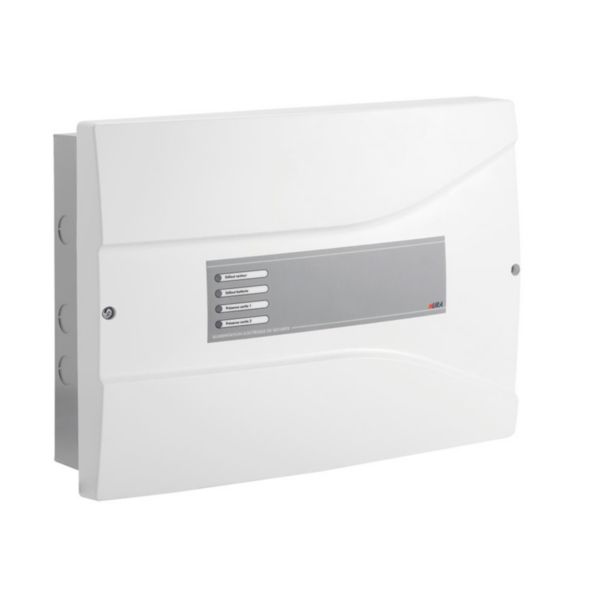

Alimentation AES 24 V - 50 W

URA

Alimentation AES 24 V - 50 W

REF. UR-324100 EAN. 3613400154210
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Voltage type (supply voltage) AC
1st secondary output voltage DC (Min-Max) 24-24 V
2nd secondary output voltage DC (Min-Max) 24-24 V
Max. output current 1 2 A
Max. output current 2 2 A
Secondary voltage adjustable No
Short-circuit-proof Yes
Rated supply voltage AC 50 Hz (Min-Max) 110-240 V
Rated supply voltage AC 60 Hz (Min-Max) 110-240 V
Output voltage stabilized Yes
Power consumption 92 VA
Power output 50 W
Stabilized No
Type of electric connection Screw connection
Suitable for rail mounting Yes
Suitable for wall mounting Yes
Suitable for distribution board No
Direct mounting possible Yes
Width 322 mm
Height 248 mm
Depth 126 mm
Suitable for safety functions Yes
SIL according to IEC 61508 None
Performance level according to EN ISO 13849-1 None
Degree of protection (IP) IP30
Operating / setting temperature (Min-Max) -5-+40 °C
Storage temperature (Min-Max) -25 -+85 °C
Halogen free Yes
Connection type Screwed terminal
Terminals capacity (Min-Max) 1.5-2.5 mm²
Mounting method Surface mounted
Vertical fixing center distance (Min-Max) 190-190 mm
Horizontal fixing center distance (Min-Max) 176-176 mm
Contains Batteries and/or Accumulator Yes
IEC code (Pack1) VRLA
Battery ou Accumulator (Pack1) Accumulator (rechargeable)
Element Composition (Pack1) Lead
Number of Pack 1 2
Number of Single Element (Pack1) 1
Single Element weight (Pack1) 2200 g
Pack1 Location Product includes a battery
Regulation Type (Pack1) P : Portable (Standard format)
