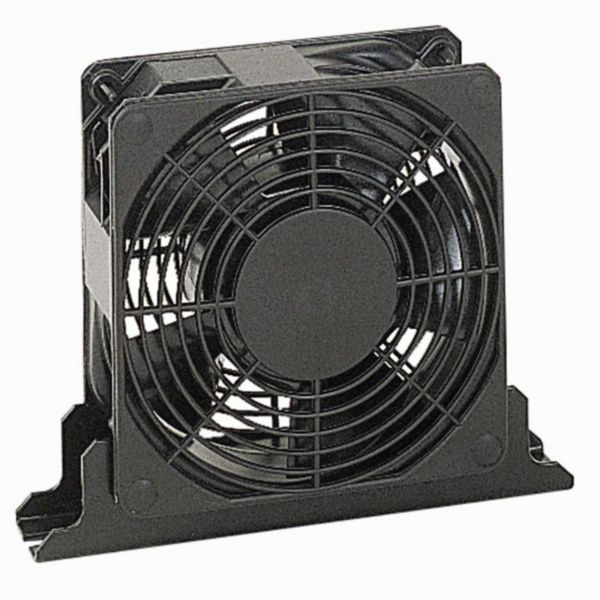

Air circulation kit - 160 mﾳ/h - for heat regulation

Name: Air circulation kit - 160 mﾳ/h - for heat regulation
SKU: 036574

LEGRAND

REF. 036574 EAN. 3245060365745

Compare You can only compare 4 products, you must remove 1 to add this one

Heat regulation for cabinets and enclosures - ventilators
Air circulation kit 160 m³/h - 230 V~ - 50/60 Hz - Uniformizes temperature in enclosure - Prevent hot spots - Plate or rail mounting in bottom part of enclosure or under most sensitive equipment - The air flow must be directed upward

Number of fans	1
Operating voltage AC 50 Hz (Min-Max)	230-240 V
Operating voltage AC 60 Hz (Min-Max)	230-240 V
Voltage type	AC
Suitable for wall built-in	No
Built as slide-in ventilator	No
Air circulator	Yes
Roof ventilator	No
With filter	No
Volume flow, freeblowing	160 m³/h

Rated power	18 W
EMC-version	No
Degree of protection (IP)	IP20
Mounting method	Screw mounting
Suitable for 19 inch rack mounting	No
Colour	Black
Width	164 mm
Height	51 mm
Depth	135 mm

2 documents

Select all

Catalogue Technical Page

ex223001_0442.pdf pdf (0.09 Mo)

Catalogue Commercial Page

ex223001_0441.pdf pdf (0.08 Mo)

1 document

Select all

3D Autocad

036574.dwg dwg (0.06 Mo)
