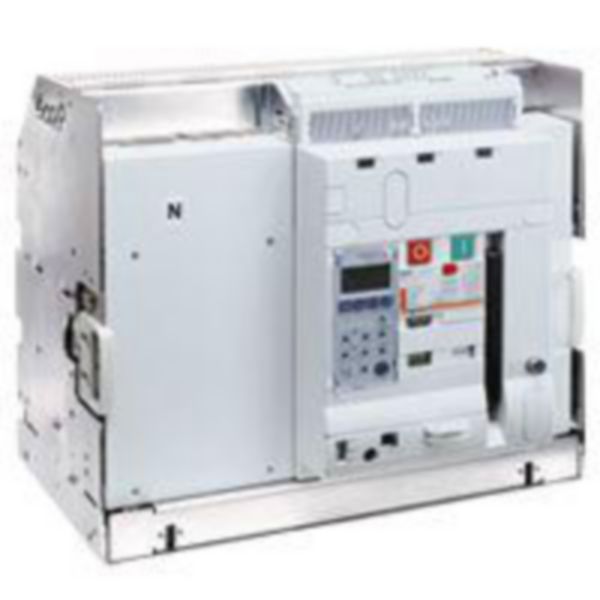

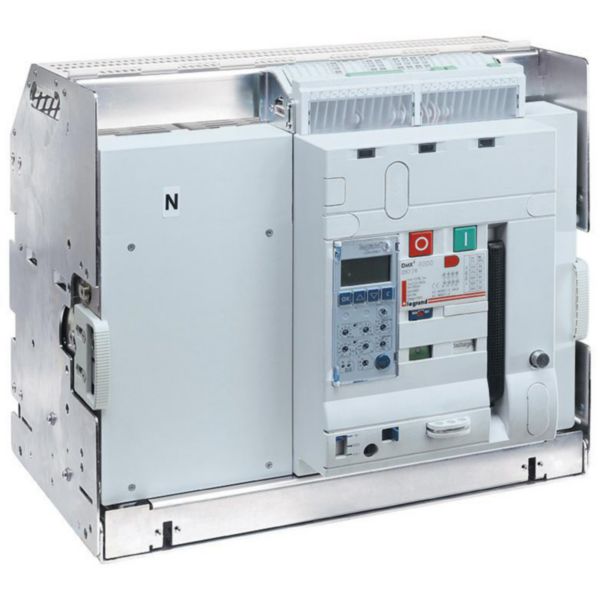

Air circuit breaker DMX³ 4000 lcu 65 kA - draw-out version and electronic protection unit - 4 poles - 3200A

DMX³ 4000 LEGRAND

Air circuit breaker DMX³ 4000 lcu 65 kA - draw-out version and electronic protection unit - 4 poles - 3200A

REF. 028757 EAN. 3245060287573

DMX³ air circuit breakers offer optimal solutions to answer to protection requirements on the origin of the low voltage electrical installation (IEC/EN 60364-1) up to 4000A.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

DMX³ air circuit breakers offer optimal solutions to answer to protection requirements on the origin of the low voltage electrical installation (IEC/EN 60364-1) up to 4000A.

Product characteristics
  • Breaking capacity of 65kA, according to EN/IEC standard 60947 - 2, suitable for protection of high power industrialinstallations. Rated insulation voltage of 1000VRated impulse withstand voltage of 12kV
  • Climatic condition according to IEC/EN 60947 - 1 Annex Q, Cat. F subject to temperature,humidity, vibration, shock and salt mist.
  • Electronic protection module ot type MP4 (adjustments accomplished by selector switches) or MP6 (adjustments through touchscreen). Thermal protection within range of 0,4 - 1,0 of the rated current.Magnetic protection within range of 1,5 - 10 of the rated current.
  • Can be equipped with releases (undervoltage and shunt releases) and auxiliary contacts.Can used with rotary handles or motor operator.Locking accessories are available.
  • Has diffent type of possible connection accessories: cage terminals, spreader and rear terminals.Is available also in a plug-in version (circuit breaker fitted with special terminals and mountedon a plug-in base) or in a draw-out version (a plug-in version fitted with a"Debro-lift" mechanism which can be used to withdraw the breaker whilekeeping it on its base)

The product's benefits

Installation
  • Electric and mechanical robustness, in addiction to breaking capacity and chances of accessorizing, are perfectly suited for increase continuity service looking at the plant energy efficiency and in respect of “green aspects”
Usage
  • DMX³ platform provide a complete "project" approach in premiummarket segment, offering a range completely suitable for high powerapplication

Technical characteristics

Rated permanent current Iu 3200 A
Rated voltage (Min-Max) 230-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 65 kA
Overload release current setting (Min-Max) 1280-3200 A
Adjustment range short-term delayed short-circuit release (Min-Max) 1920-32000 A
Adjustment range undelayed short-circuit release (Min-Max) 6400-65000 A
Device construction Built-in device slide-in technique (withdrawable)
Integrated earth fault protection Yes
Suitable for DIN rail (top hat rail) mounting No
DIN rail (top hat rail) mounting optional No
Number of auxiliary contacts as normally closed contact 4
Number of auxiliary contacts as change-over contact 4
With switched-off indicator Yes
With integrated under voltage release No
Number of poles 4
Position of connection for main current circuit Back side
Type of control element Push button
Complete device with protection unit Yes
Motor drive integrated Yes
Motor drive optional Yes
Degree of protection (IP) IP30
