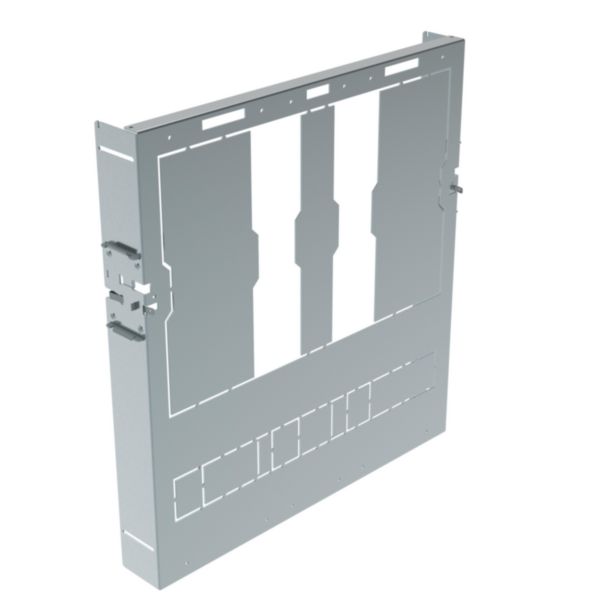

Adjustable fixing device XL³ 4000 -for 1-2 DPX³ 630 plug-in/draw-out+elcbs -vert

Name: Adjustable fixing device XL³ 4000 -for 1-2 DPX³ 630 plug-in/draw-out+elcbs -vert
SKU: 021061

LEGRAND

REF. 021061 EAN. 3414970756787

Compare You can only compare 4 products, you must remove 1 to add this one

Equipment for XL³ 4000 - for mounting on adjustable plates : DPX³ 630 plug - in, draw - out version or automatic transfer switches - Adjustable plates are used for front terminal/rear terminal connection and mounting of motor - driven or rotary handles
Fixing plug - in or draw - out version DPX³ 630, with Front or rear terminals Adjustable fixing devices for MCCBs in vertical position - The MCCBs are fixed using special plates - For 1 to 2 DPX³ 630 with elcbs

Model	Other
Suitable for enclosure building width	725 mm
Width	600 mm

Height	600 mm
Material	Metal

2 documents

Select all

Instruction Use

G5955C.pdf pdf (2.05 Mo)

Workshop Book

Workshop Book: XL³ 4000 and XL³ 6300 pdf (51.43 Mo)

2 documents

Select all

Catalogue Commercial Page

ex223001_0388.pdf pdf (0.07 Mo)

Catalogue Technical Page

ex223001_0390.pdf pdf (0.44 Mo)
