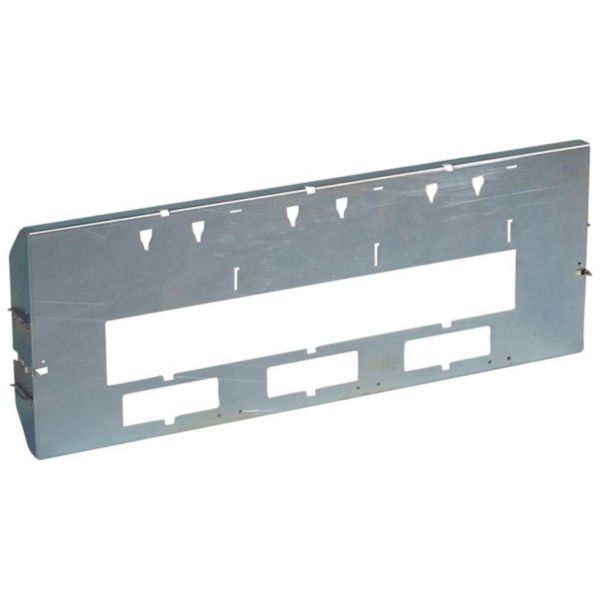

Adjust fixing device XL³ 4000 - 1-3 DPX 250/630 fixed + elcb - vertical - 36 modules

Name: Adjust fixing device XL³ 4000 - 1-3 DPX 250/630 fixed + elcb - vertical - 36 modules
SKU: 020772

LEGRAND

REF. 020772 EAN. 3245060207724

Compare You can only compare 4 products, you must remove 1 to add this one

Equipment for XL³ 4000 - for mounting on adjustable plates : DPX³ 630 fixed version - Adjustable plates are used for front terminal/rear terminal connection and mounting of motor - driven or rotary handles

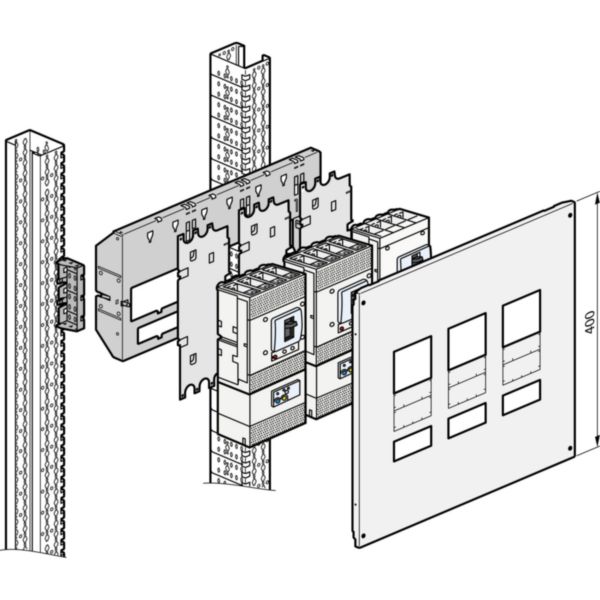

Fixing fixed version DPX³ 630, with Front or rear terminals Adjustable fixing devices for MCCBs in vertical position - The MCCBs are fixed using special plates - 36 modules - For 1 to 3 DPX³ 630 with earth leakage module

Model	Other
Suitable for enclosure building width	975 mm

Width	850 mm
Material	Metal

2 documents

Select all

Workshop Book

Workshop Book: XL³ 4000 and XL³ 6300 pdf (51.43 Mo)

Instruction Use

G5956C.pdf pdf (1.8 Mo)

2 documents

Select all

Catalogue Commercial Page

ex223001_0388.pdf pdf (0.07 Mo)

Catalogue Technical Page

ex223001_0390.pdf pdf (0.44 Mo)

2 documents

Select all

Agreement

LOVAG-IT 12.017 (0.13 Mo)

Agreement

LOVAG-IT 12.019 (0.59 Mo)
