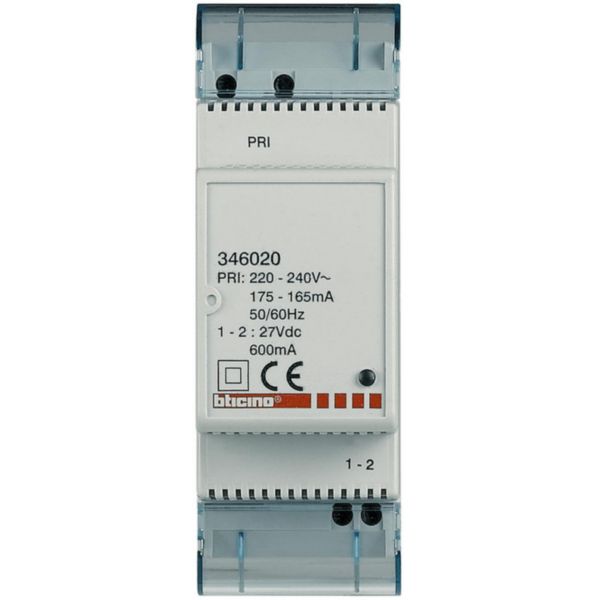

Additional power supply to be used to supply entrance panels and internal units locally. 2 DIN modular enclosure.

Name: Additional power supply to be used to supply entrance panels and internal units locally. 2 DIN modular enclosure.
SKU: 346020

BTICINO

REF. 346020 EAN. 8012199955933

Compare You can only compare 4 products, you must remove 1 to add this one

Voltage type (supply voltage)	DC
1st secondary output voltage (Min-Max)	26.9-27.1 V
Max. output current 1	0.6 A
Secondary voltage adjustable	No
Short-circuit-proof	Yes
Rated supply voltage AC 50 Hz (Min-Max)	220-240 V
Rated supply voltage AC 60 Hz (Min-Max)	220-240 V
Output voltage stabilized	Yes
Power consumption	41.8 VA
Power output	16.2 W
Stabilized	Yes

Type of electric connection	Screw connection
Suitable for rail mounting	Yes
Suitable for wall mounting	No
Suitable for distribution board	Yes
Width in number of modular spacings	2
Direct mounting possible	No
Width	33.9 mm
Height	89.7 mm
Depth	66.2 mm
Suitable for safety functions	No
Degree of protection (IP)	IP30

2 documents

Select all

Instruction Use

U2831J.pdf pdf (3.23 Mo)

Technical Sheet

BT00659-c-EN.pdf pdf (0.16 Mo)

4 documents

Select all

Catalogue Technical Page

ex223001_0646.pdf pdf (0.04 Mo)

Catalogue Technical Page

ex223001_0639.pdf pdf (0.09 Mo)

Catalogue Commercial Page

ex223001_0638.pdf pdf (0.08 Mo)

Catalogue Commercial Page

ex223001_0649.pdf pdf (0.06 Mo)
