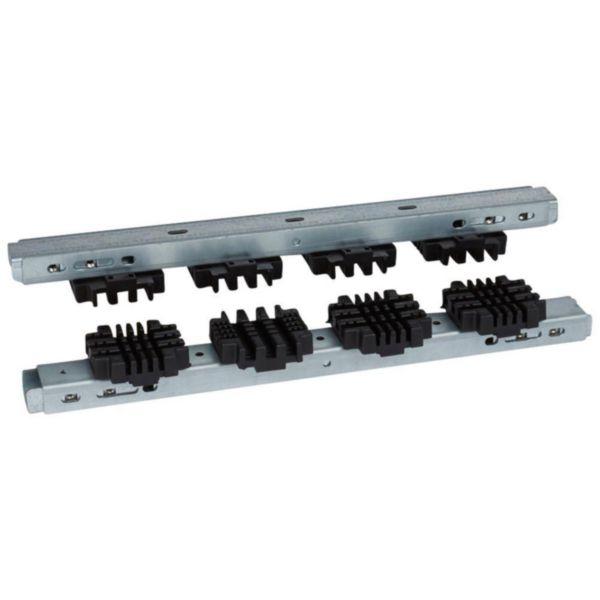

Additional isolating support for busbar 6300 A - 3 bars 200 x 10 mm

Name: Additional isolating support for busbar 6300 A - 3 bars 200 x 10 mm
SKU: 037313

LEGRAND

REF. 037313 EAN. 3245060373139

Compare You can only compare 4 products, you must remove 1 to add this one

Isolating supports for busbars for XL³ enclosures - Standard distribution

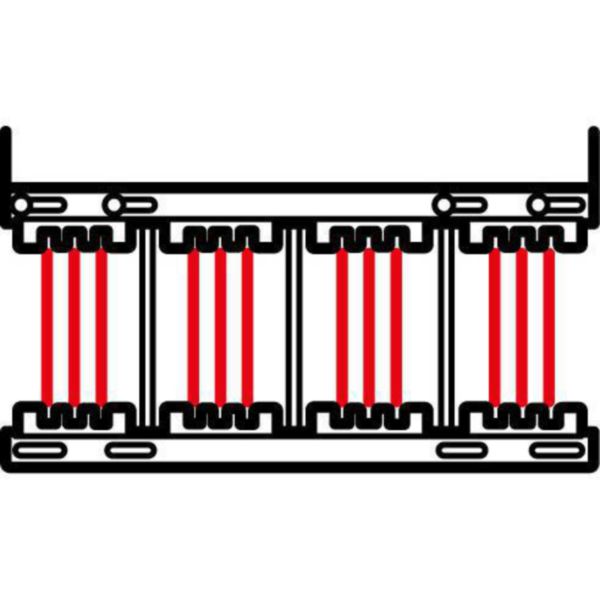

1 to 4 bars per pole 6300 A - Reinforced 4P isolating supports - Hold flat copper bars in position - Up to three 200 x 10 mm bars per pole - Additional support - Mounted in addition to fixed support Cat.No 0 373 12 to comply with the distances (Isc withstand)

2 documents

Select all

Instruction Use

LE05201AA.pdf pdf (0.71 Mo)

Workshop Book

Workshop Book: XL³ 4000 and XL³ 6300 pdf (51.43 Mo)

2 documents

Select all

Catalogue Commercial Page

ex223001_0405.pdf pdf (0.11 Mo)

Catalogue Commercial Page

ex223001_0396.pdf pdf (0.23 Mo)

1 document

Select all

Constructor Declaration

DC-D13_13-SELECTIVITE _FILIATION-A-3-NIVEAUX.pdf pdf (0.62 Mo)
