Additional battery cabinet - for UPS Cat.No 3 101 54

LEGRAND

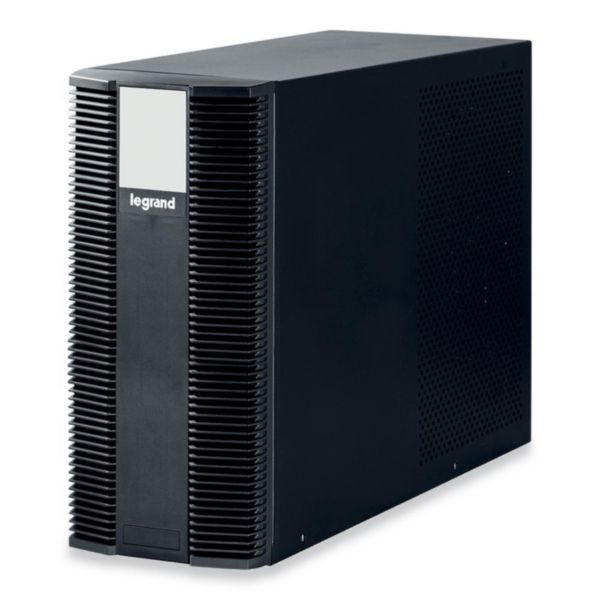

Additional battery cabinet - for UPS Cat.No 3 101 54

REF. 310598 EAN. 3414970499332
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Keor LP - On - line double conversion UPS (tower) - single phase VFI - For security systems, lighting systems, CCTV, servers. Ideal for environments with frequent electrical disturbances - Installation : downstream power generators. Advanced management depending on the battery discharge level - Self - diagnosis. Power factor : 0,9 - Automatic internal bypass, manual bypass for external maintenance (optional) - Integrated slot for installing a comm unication interface for Ethernet network connection, to be ordered separately - Cold Start function - Microprocessor control - Telephone line/Internet protection (RJ 11/RJ 45) - Internal network interface Cat.No 3 108 82 for remote protection of equipment and systems - Remote emergency shutdown function (''Emergency Power Off'' - EPO)
  • Additional battery cabinetsBattery cabinets - For UPS Cat.No 3 101 54 - Battery included

Technical characteristics

Type of accessory/spare part Battery/accumulator
Accessory Yes
Spare part No
Width 151 mm
Height 322 mm
Depth 444 mm
Contains Batteries Yes
Number of batteries (Type 1) 1
Battery ou Accumulator (Type 1) Accumulator (rechargeable)
Battery Composition (Type 1) Rechargeable - Lead
Battery Location (Type 1) Product includes a battery
Regulation Type (Type 1) I : Industrial (not Portable)
Battery weight (g) for Type 1 2050 g
Number of Single Element (Pack1) 1

Documentation

3 documents
White Book
Instruction Use
LE07381AC.pdf pdf (4.21 Mo)
Technical Guide
EXB21082_EN.pdf pdf (11.02 Mo)
2 documents
RoHS DIRECTIVE
REACH DECLARATION
1 document
Catalogue Commercial Page
ex223001_0931.pdf pdf (0.13 Mo)
