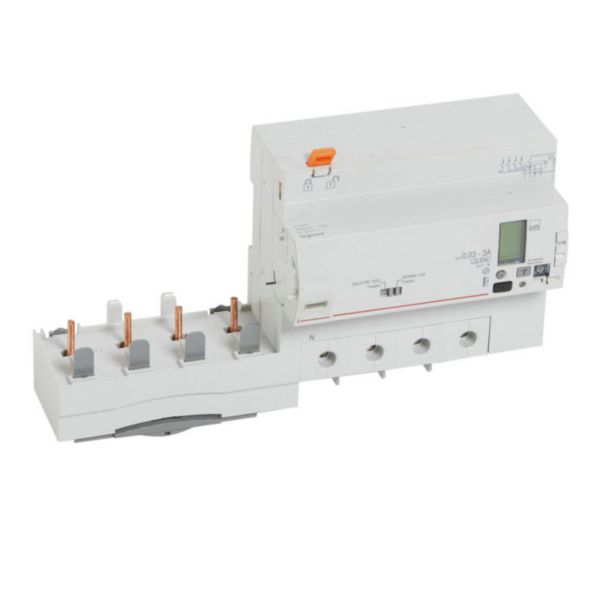

Name: Add-on modules DX³ - 4P- 400 V~ - 63 A- 30/3000 mA- Hpi type / integrated energy meter
SKU: 410657

Add-on modules DX³ - 4P- 400 V~ - 63 A- 30/3000 mA- Hpi type / integrated energy meter

LEGRAND

Add-on modules DX³ - 4P- 400 V~ - 63 A- 30/3000 mA- Hpi type / integrated energy meter

REF. 410657 EAN. 3245064106573

Compare You can only compare 4 products, you must remove 1 to add this one

Add - on modules DX³ - for 1.5 module/pole DX³ MCBs - Conform to IEC 61009 - 1, IEC 62423 (F type) - Voltage independent tripping except Cat.Nos 4 106 57/58/59 - AC type : detect AC components faults - F type (High immunity) : detect faults with AC and DC components, increased immunity to false tripping - Detection of high frequency fault currents - For mounting on the right - hand side of 1.5 module per pole DX³ MCBs
4-pole 400 V~ - Metering - LCD display - For displaying active energy, instantaneous power and current per phase (A) consumptionF type (old Hpi type) with integrated energy meter - Sensitivity : 30 to 3000 mA - Nominal rating In : 63 A - Number of modules : 7.5

Nominal voltage (Min-Max)	250-440 V
Nominal current	63 A
Rated fault current adjustable	Yes
Rated fault current (Min-Max)	0.03-3 A
Max. delay time	3000 ms
Delay adjustable	Yes
Number of poles	4
Leakage current type	Other
Frequency	50 Hz
Rated insulation voltage Ui	500 V
Rated impulse withstand voltage Uimp	6 kV
Connectable conductor cross section solid-core (Min-Max)	1.5-50 mm²
Connectable conductor cross section multi-wired (Min-Max)	1.5-35 mm²
Anti-nuisance tripping version	Yes
With interlocking device	Yes
Degree of protection (IP)	IP20
Pollution degree	3
Ambient temperature during operating (Min-Max)	-25-60 °C
Width	240.3 mm
Height	129 mm
Depth	78 mm

degree of impact strength (IK)	IK01
Storage temperature (Min-Max)	-40-70 °C
Voltage type	AC
Terminal marking indication	Yes
Colour	Grey
RAL-number	7035
Halogen free	Yes
Connection type	Screwed terminal , Cable
Mounting method	DIN rail
Contains Batteries and/or Accumulator	Yes
IEC code (Pack1)	CR1616
Battery ou Accumulator (Pack1)	Battery (not rechargeable)
Element Composition (Pack1)	Lithium (battery or accumulator)
Number of Pack 1	2
Number of Single Element (Pack1)	1
Single Element weight (Pack1)	1.1 g
Pack1 Location	Product includes a battery
Regulation Type (Pack1)	P : Portable (Standard format)
Connected object	Yes
Application store for download	Not applicable
