Actuator 2-channels management of LED lamps , CFL, linear fluorescent with electronic and ferromagnetic transformers.

My Home Up BTICINO

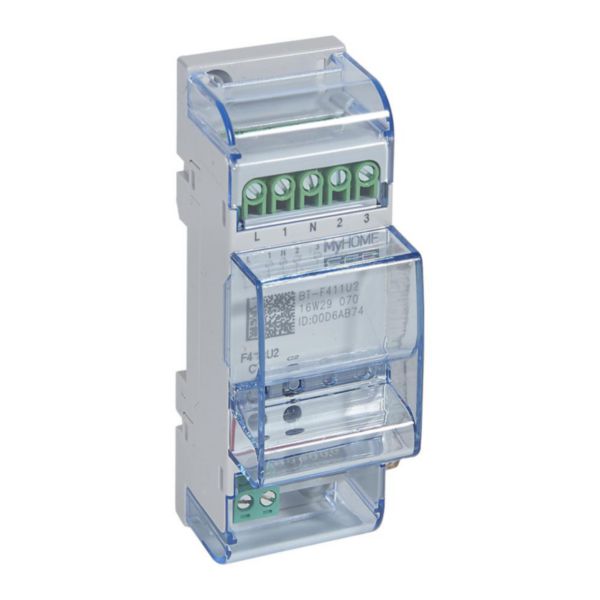

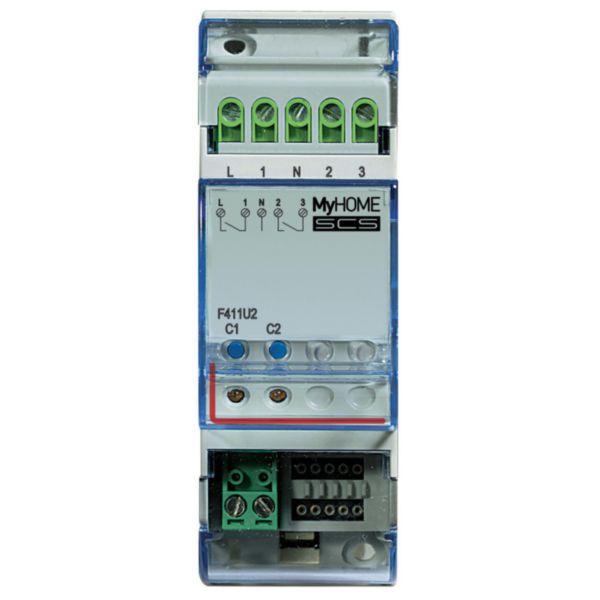

Actuator 2-channels management of LED lamps , CFL, linear fluorescent with electronic and ferromagnetic transformers.

REF. F411U2 EAN. 8005543533871
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • 2 DIN modules
  • Rated voltage 27 V d.c.
  • Rated current 0,055 A
  • Rated power VA 460
  • Rated power W 1380

Technical characteristics

Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency No
Bus system LON No
Bus system Powernet No
Other bus systems None
Mounting method Other
Width in number of modular spacings 2
Local operation/hand operation Yes
With LED indication Yes
Number of digital inputs 1
Max. switching power 1000 W
Max. number of switching contacts 4
Rated operating voltage (Min-Max) 27-27 V
With bus connection No
Degree of protection (IP) IP20
Connected object No
Product use function Lighting management

Documentation

4 documents
Technical Sheet
ST-00002461-FR.pdf pdf (0.29 Mo)
Technical Sheet
ST-00000893-EN.pdf pdf (0.27 Mo)
Technical Sheet
ST-00000893-FR.pdf pdf (0.27 Mo)
Technical Sheet
ST-00002461-EN.pdf pdf (0.29 Mo)
2 documents
Catalogue Technical Page
ex223001_0646.pdf pdf (0.04 Mo)
Catalogue Commercial Page
ex223001_0645.pdf pdf (0.07 Mo)
