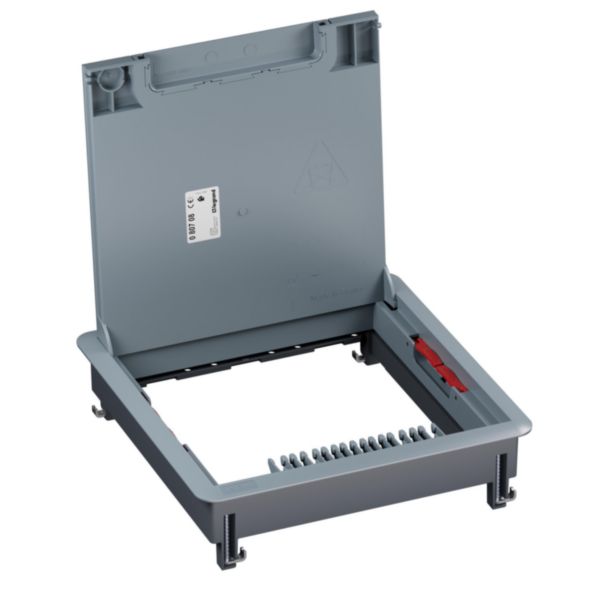

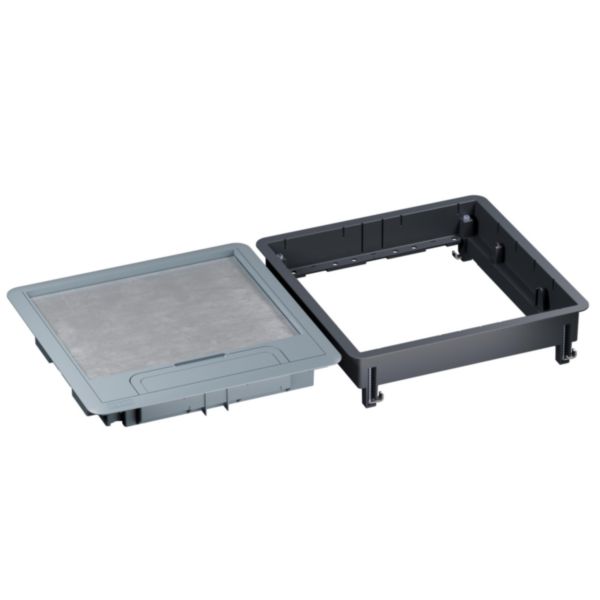

Access cover frame and lid plastic - Raised floor 286x286mm - IP20 - Removable lid

Legrand

Access cover frame and lid plastic - Raised floor 286x286mm - IP20 - Removable lid

REF. 080708 EAN. 3414972837279

Access cover frame and lid plastic, 286x286mm, for raised floor, load resistance 3000N. Removable lid enables easy wiring access. Plastic construction eliminates earthing requirements. IP20 protection enhances safety and flexibility.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Access cover frame and lid plastic, 286x286mm, for raised floor, load resistance 3000N. Removable lid enables easy wiring access. Plastic construction eliminates earthing requirements. IP20 protection enhances safety and flexibility.

Product characteristics
  • Available in three sizes and upgradeable with standard equipment supports, allowing conversion from a trap to a floor box for flexible subfloor installations.
  • Height adjustable from a minimum of 73mm, supporting precise alignment with raised floor systems.
  • Removable lid enables straightforward access for wiring device connections; assembled unit withstands a vertical load of 3000N distributed over a diameter 130mm area.
  • Compatible lids accommodate all finish types up to 8mm thick, ensuring seamless integration with diverse flooring materials.
Recommendation / Restriction
  • Indoor use only.

The product's benefits

Installation
  • Quick and easy installation due to clip-on assembly and disassembly of components (unclip by hand or with a screwdriver). Baskets offer maximum wiring capacity to help with socket wiring. Baskets are equipped with quick-fit cable retainers (no screw). Pre-cut cable entries for easy installation.
Usage
  • Adapts to all uses. Lid can be changed with after-sales references. Plastic and stainless steel finishes are easily interchangeable.
Avantages
  • A range available in three sizes, suitable for all types of floor (raised floors, concrete screeds) and scalable because it features common equipment supports (a frame and lid floor box can be made flush-mounted without decabling the sockets).
  • Plastic frame: no need earthing.
  • Two cable outlet orientations. Frame and lid easily reversible through 180°. Locking system with or without key.

Technical characteristics

Width 286 mm
Height 78.7 mm
Depth 286 mm
Suitable for subfloor duct countersunk (closed) No
Suitable for subfloor duct overhead closed No
Built-in opening for floor column No
Built-in opening for built-in unit Square
Material side wall Plastic
Suitable for placing of sealing No
Decoupling possibility cover from base unit Yes
Degree of protection (IP) IP20
