Access cover frame and lid plastic raised floor 203x286mm - IP20 - Removable lid - Decoupling from base unit

Legrand

Access cover frame and lid plastic raised floor 203x286mm - IP20 - Removable lid - Decoupling from base unit

REF. 080706 EAN. 3414972837255

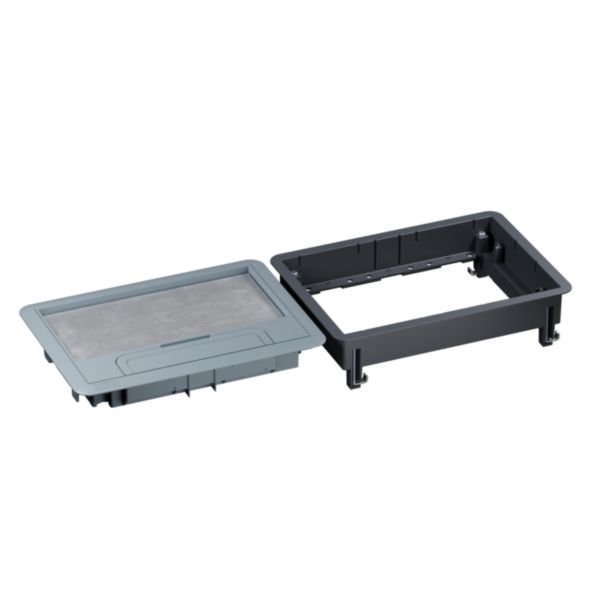

Access cover frame and lid, plastic, 203x286mm, for raised floor; IP20 protection, 3000N load resistance. Removable lid allows easy wiring access and decoupling from base unit for durable, accessible cable management.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Access cover frame and lid, plastic, 203x286mm, for raised floor; IP20 protection, 3000N load resistance. Removable lid allows easy wiring access and decoupling from base unit for durable, accessible cable management.

Product characteristics
  • Available in three sizes and upgradeable with common equipment supports, allowing a trap to be converted into a floor box for flexible subfloor installations.
  • Height adjustable from a minimum of 73mm, supporting precise alignment with raised floor systems.
  • Removable lid enables straightforward access for wiring device connections; assembled floor box withstands a vertical load of 3000N distributed over a 130mm diameter surface.

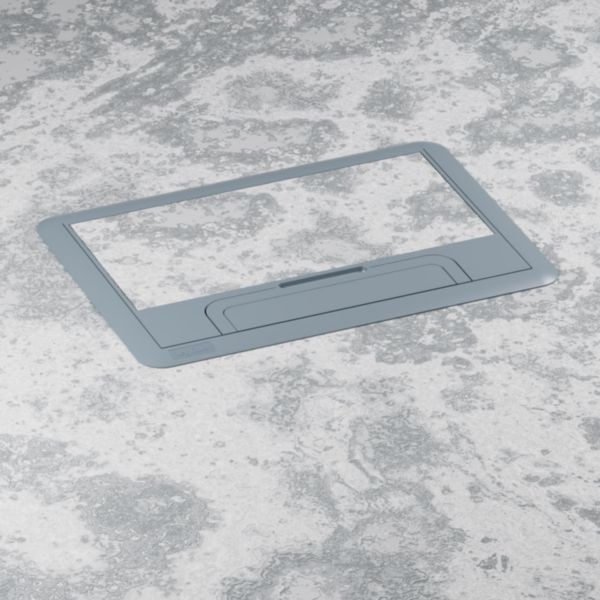

  • Compatible lids accommodate all floor finishes up to 8mm thick, ensuring seamless integration with diverse flooring materials.
Recommendation / Restriction
  • Indoor use only.

The product's benefits

Installation
  • Quick and easy installation due to clip-on assembly and disassembly of components (unclip by hand or with a screwdriver). Baskets offer maximum wiring capacity to help with socket wiring. Baskets are equipped with quick-fit cable retainers (no screw). Pre-cut cable entries for easy installation.
Usage
  • Adapts to all uses. Lid can be changed with after-sales references. Plastic and stainless steel finishes are easily interchangeable.
Avantages
  • A range available in three sizes, suitable for all types of floor (raised floors, concrete screeds) and scalable because it features common equipment supports (a frame and lid floor box can be made flush-mounted without decabling the sockets).
  • Plastic frame: no need earthing.
  • Two cable outlet orientations. Frame and lid easily reversible through 180°. Locking system with or without key.

Technical characteristics

Width 203 mm
Height 78.7 mm
Depth 286 mm
Suitable for subfloor duct countersunk (closed) No
Suitable for subfloor duct overhead closed No
Built-in opening for floor column No
Built-in opening for built-in unit Rectangular
Material side wall Plastic
Suitable for placing of sealing No
Decoupling possibility cover from base unit Yes
Degree of protection (IP) IP20
