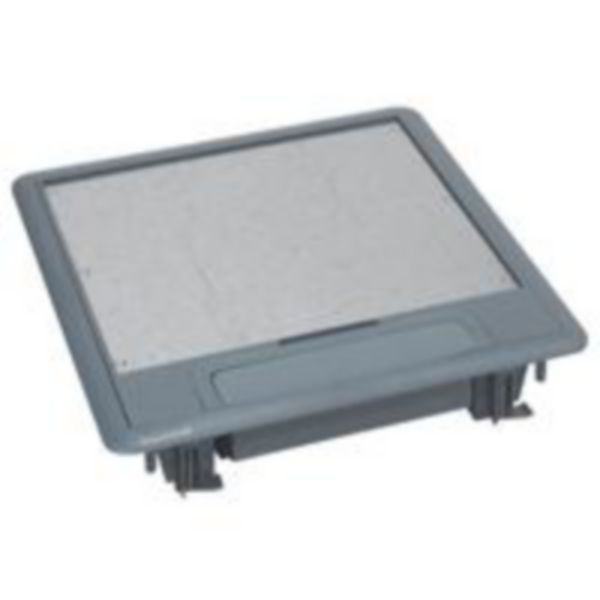

50 mm "reduced height" floor boxes - 16 modules

Name: 50 mm "reduced height" floor boxes - 16 modules
SKU: 088070

Mosaic™ LEGRAND

REF. 088070 EAN. 3414970330291

Compare You can only compare 4 products, you must remove 1 to add this one

For raised or concrete floor from 50 to 70 mm
Vertical wiring device positioning
Color grey RAL 7031 ABS floor boxes, plastic handle in PA 6.6 loaded fiberglass and TPEE cable exit (elastomer)
To be equipped with Arteor/Mosaic mechanism

Using straight plugs recommended - Be careful when positioning sockets in their supports (earth pin on top = side outlet plugs can’t be used) - Temperature of use, transport and storage: -5° à +60° - Do not use tile on the cover

Flexible cable exit for better cable protection and more resistance to the passage

Easy opening by large ergonomic handle, without tool
Delivered with toolless removable cover for coating (carpet or vinyl): easy maintenance
Speed, robustness and functionality: facilitates the use and allows optimized cable management.

Suitable for hollow floor	No
Suitable for double floor built-in	Yes
Suitable for wet cleaning	No
Outer width	283 mm
Outer length	283 mm
Length built-in dimension	261 mm
Width built-in dimension	261 mm
Min. built-in depth	50 mm
