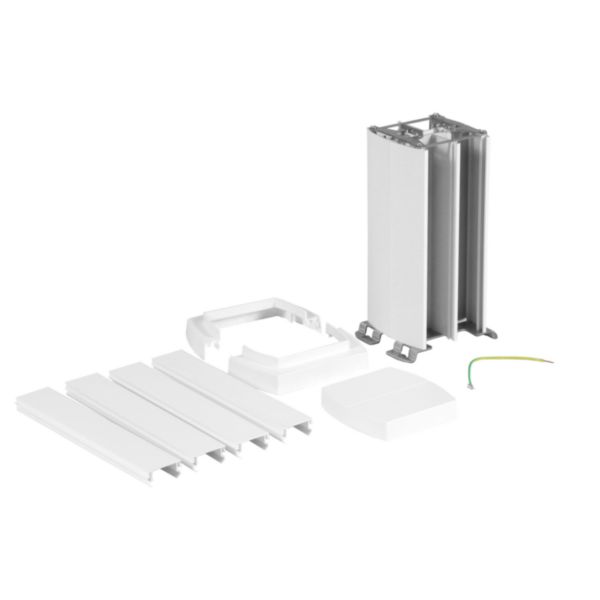

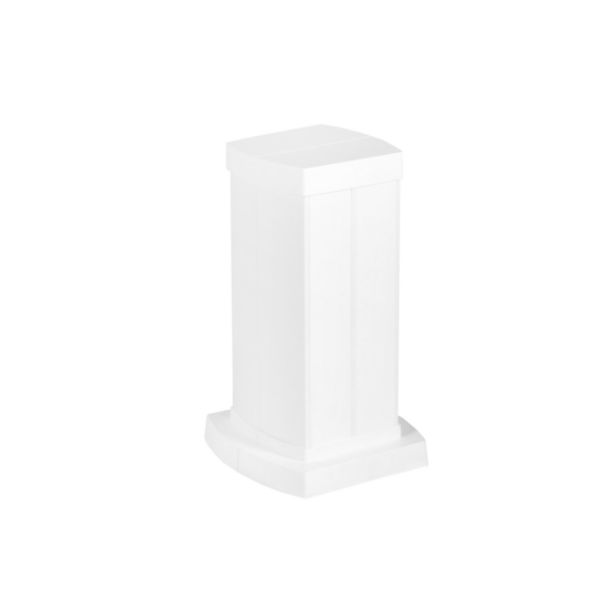

4 compartments snap-on mini-column. White finish. 0,30m

LEGRAND

4 compartments snap-on mini-column. White finish. 0,30m

REF. 653040 EAN. 3414971194892
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • IK8 for aluminium body
  • IK7 system (body+cover)
  • An Ovaline extension kit allowing the arrival of ceiling cables
Recommendation / Restriction
  • Can not be installed outside.

The product's benefits

Installation
  • Ability to add a wide range of accessories: tablets, foot, foot + wheels, ovaline kit…
Usage
  • Can be equipped with a metalic 6kg-foot (cat.nos 653086 white or 653087 grey) to transform it on movable mini-column.

Technical characteristics

Pillar shape Square
Model Double-sided
Pre-wired No
Adjustable No
Height levelling 0 mm
Column height 300-300 mm
Number of usable covers 4
Cover width 45 mm
Type of fastening Screwing
Place variable No
Suitable for ceiling mounting No
Suitable for floor mounting Yes
Cable entry Bottom
Through-going profile Yes
Material installation column Aluminium
Material quality installation column Other
Material installation column halogen free Yes
Surface protection column Other
Colour column White
RAL-number column 9003
Material cover Plastic
Material quality cover Polyvinyl chloride (PVC)
Material cover halogen free No
Cover surface Untreated
Colour top cover White
RAL-number cover 9003
Number of partitions 4
Usable cross section 11040 mm²

Documentation

3 documents
Instruction Use
LE10475AA-03.pdf pdf (3.63 Mo)
Technical Sheet
F02784FR_08.pdf pdf (4.16 Mo)
Technical Sheet
F02559EN_09.pdf pdf (5.69 Mo)
2 documents
Catalogue Commercial Page
ex223001_1127.pdf pdf (0.16 Mo)
Catalogue Technical Page
ex223001_1130.pdf pdf (0.21 Mo)
26 documents
BIM Data
BIM Data
3D Autocad
3D_LG-653040.stp ifc (9.32 Mo)
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
2 documents
PEP
LGRP-01606-V02.01-EN.pdf pdf (0.81 Mo)
PEP
LGRP-01606-V02.01-FR.pdf pdf (0.77 Mo)
