2P+E plug - 16 A - Fr/German standard - easy extraction - black/grey - gencod label

LEGRAND

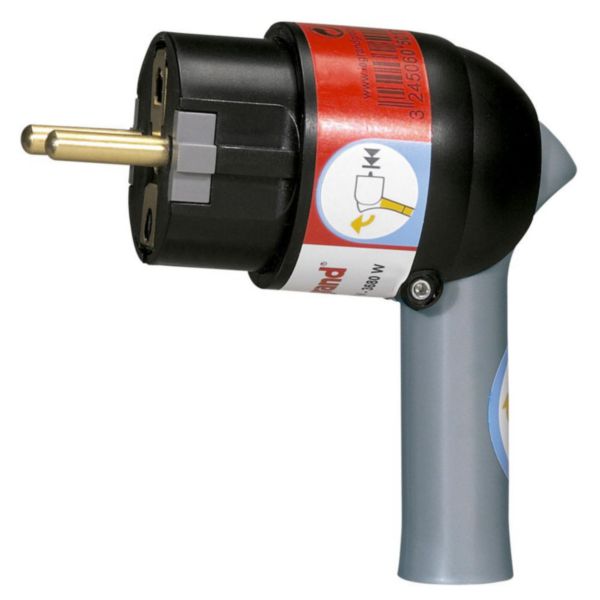

2P+E plug - 16 A - Fr/German standard - easy extraction - black/grey - gencod label

REF. 050176 EAN. 3245060501761
Plug for connecting a cable to a power outlet or female plug, with 2P+E 16A 250V AC design to the French/German standard. Easy-extraction lever, side outlet, and screw cable grip for 3x1.5mm² cables ensure secure, convenient installation.
Download product sheet
Colour :
You can only compare 4 products, you must remove 1 to add this one

Description

Plug for connecting a cable to a power outlet or female plug, with 2P+E 16A 250V AC design to the French/German standard. Easy-extraction lever, side outlet, and screw cable grip for 3x1.5mm² cables ensure secure, convenient installation.

Product characteristics
  • Plastic single-socket plugs and extensions - German standard2P+E plugs - 16 A - easy extraction - System enabling extraction of sockets thanks to the lever - extractor - 3 x 1.5mm ² max. cable, screw cable grip, side outlet - Gencod labelling - Black and Grey

Technical characteristics

Material Plastic
Material quality Thermoplastic
Degree of protection (IP) IP20
Insert direction Angled
Connection system Screwed terminal
Colour Black
Number of poles 2
Nominal voltage 250 V
Nominal current 16 A
For heavy conditions according to VDE No
Height 86.5 mm
Depth 87 mm
Voltage type AC
Halogen free Yes
Antimicrobial treatment No
Connection type Screwed terminal

Product environmental data

Product recycled content
6%
Percentage of recycled materials in product
Primary packaging recycled content
69%
Percentage of recycled materials in primary packaging

Documentation

2 documents
Instruction Use
LE02786AA.pdf pdf (0.01 Mo)
Instruction Use
050176_LE02704AB.pdf pdf (0.03 Mo)
2 documents
RoHS DIRECTIVE
REACH DECLARATION
1 document
Catalogue Commercial Page
ex223001_0824.pdf pdf (0.1 Mo)
3 documents
Agreement
Agreement
OC / CB-FR_712076 (0.49 Mo)
Agreement
