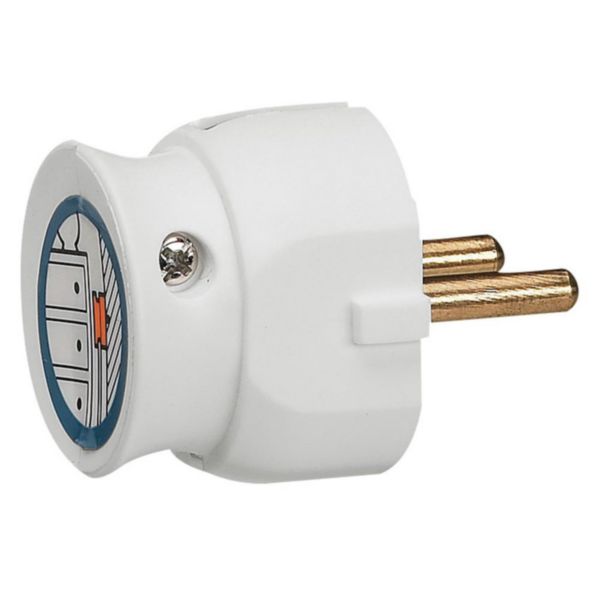

2P plug - 16 A - plastic extra slim - white - gencod labelling

LEGRAND

2P plug - 16 A - plastic extra slim - white - gencod labelling

REF. 050183 EAN. 3245060501839
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • Plastic single-socket plugs and extensions - German standard 2P plugs - 16 A - extra - slim - Side outlet plugs , ideally behind an item of furniture - 2 x 1.5mm ² max. cable, screw cable grip - Gencod labelling - White

Technical characteristics

Model Other
Material Plastic
Material quality Thermoplastic
Degree of protection (IP) IP20
Insert direction Angled
Connection system Screwed terminal
Colour White
Number of poles 2
Nominal voltage 250 V
Nominal current 16 A
For heavy conditions according to VDE No
Width 36.5 mm
Height 36.5 mm
Depth 48 mm
Operating / setting temperature -10-35 °C
Storage temperature -15-70 °C
Voltage type AC
Frequency 50-60 Hz
Halogen free Yes
Antimicrobial treatment No
Connection type Screwed terminal

Documentation

3 documents
Instruction Use
LE02785AA.pdf pdf (0.02 Mo)
Technical Sheet
F01214FR-00.pdf pdf (0.73 Mo)
Instruction Use
050183_LE02702AA.pdf pdf (0.03 Mo)
1 document
Catalogue Commercial Page
ex223001_0824.pdf pdf (0.1 Mo)
