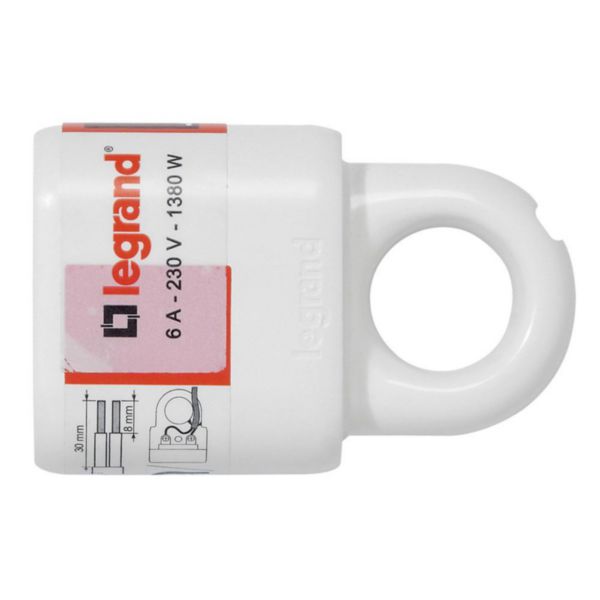

2P extension - 6 A - plastic with extraction ring - white - gencod labelling
LEGRAND
2P extension - 6 A - plastic with extraction ring - white - gencod labelling
REF. 050166
EAN.
3245060501662
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Model | Other |
|---|---|
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Degree of protection (IP) | Other |
| Insert direction | Straight |
| Connection system | Screwed terminal |
| Suitable for protective contact pin | No |
| Colour | White |
| RAL-number | 9003 |
| Number of poles | 2 |
| Nominal voltage | 250 V |
| Nominal current | 6 A |
|---|---|
| For heavy conditions according to VDE | No |
| Width | 43 mm |
| Height | 22.5 mm |
| Depth | 67 mm |
| Operating / setting temperature | -10-35 °C |
| Storage temperature | -15-70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Connection type | Screwed terminal |
| Terminals capacity | 0.75-0.75 mm² |
Documentation
2 documents
Instruction Use
Technical Sheet
1 document
Catalogue Commercial Page
