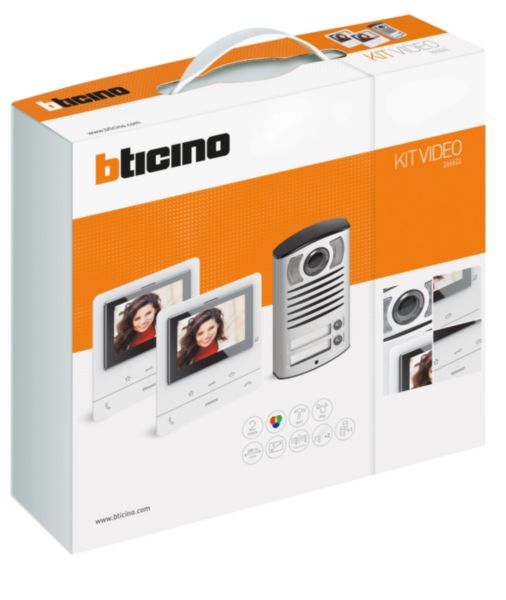

2 wires KIT composed by 2 handsfree video internal units with 5” colour LCD display and LINEA2000 external panel

Name: 2 wires KIT composed by 2 handsfree video internal units with 5” colour LCD display and LINEA2000 external panel
SKU: BT-364622

Classe 100 Bticino

REF. BT-364622 EAN. 8005543631126

Compare You can only compare 4 products, you must remove 1 to add this one

The 3 capacitive keys are : open the gate, camera view and favourite button
Possibility to configure the favourite button with one more function : door lock, intercom, staircase light and other activation
The installation can be made to the wall using the bracket or using table base
The external panel is IP54 and IK07
Alimentation BUS/SCS 18-27 Vcc

Ideal for bifamily house thanks to the presence of 2 internal unit and the external panel with 2 pushbuttons

Simple installation, 2-wires system
Immediate replacement of an old 2-wires internal unit, without additional work for the installer

With video	Yes
Number of indoor stations	2
Number of outdoor stations	1
Installation technique	Bus system
Mounting method indoor station	Surface mounted
Colour indoor station	White
Mounting method outdoor station	Surface mounted
Material outdoor station	Aluminium
Colour outdoor station	Grey
Expandable to max. number of indoor stations	2
Expandable to max. number of outdoor stations	2
Picture system	PAL
Can be connected to smartphone	No
Internal communication	Yes
Hands free	Yes
With day/night function	Yes
Opening angle camera	15 °
Zoom, pan/tilt function	No
With memory function	No
Manual adjustable camera	Yes
Label space/information surface	Yes
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Width	164 mm
Height	165 mm
Depth	20.5 mm
degree of impact strength (IK)	IK07
Degree of protection (IP)	IP54
Operating / setting temperature (Min-Max)	-25-70 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	DC
Nominal voltage (Min-Max)	18-27 V
Supply current (Min-Max)	0.010-0.25 A
Frequency (Min-Max)	0-0 Hz

Sound level	82 dB
Standby consumption	30 mA
Antimicrobial treatment	No
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	0.1-2.5 mm²
Fitted with USB plug	Yes
Fitted with rainproof plate protection	Yes
With complemantary luminous signal	No
Mounting method	Supporting bracket
Vertical fixing center distance (Min-Max)	1600-1650 mm
Control mode	Wired
Contains Batteries and/or Accumulator	No
Additional unit	Yes
Loudness setting	Yes
Addressable	Yes
Door entry system with mobile application	No
Number of ringtones	16
Remote opening of gate / Electric door opener	Yes
Screen resolution	Other
Screen brightness setting	Yes
Screen contrast setting	Yes
Camera type	Adjustable
Max distance between internal and external unit	600 m
IEC code (Pack1)	Not applicable
Battery ou Accumulator (Pack1)	Not applicable
Element Composition (Pack1)	Not applicable
Number of Pack 1	0
Number of Single Element (Pack1)	0
Single Element weight (Pack1)	0 g
IEC code (Pack2)	Not applicable
Battery ou Accumulator (Pack2)	Not applicable
Element Composition (Pack2)	Not applicable
Number of Pack 2	0
Number of Single Element (Pack2)	0
Single Element weight (Pack2)	0 g
Connected object	No
