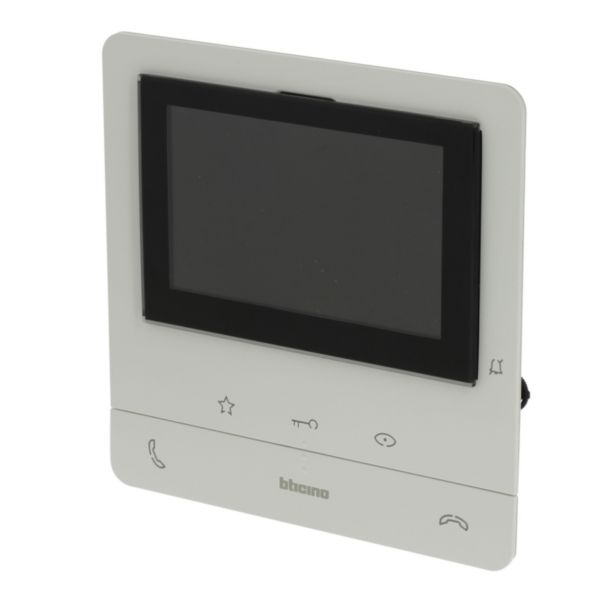

Name: 2 wires handsfree video internal unit with 5” colour lcd display
SKU: BT-344652

2 wires handsfree video internal unit with 5” colour lcd display

Classe 100 Bticino

2 wires handsfree video internal unit with 5” colour lcd display

REF. BT-344652 EAN. 8005543630839

Compare You can only compare 4 products, you must remove 1 to add this one

The 3 capacitive keys are : open the gate, camera view and favourite button
Possibility to configure the favourite button with one more function : door lock, intercom, staircase light and other activation
The installation can be made to the wall using the bracket or using table base
The device has a side joystick to adjust: colour, brightness and display contrast, audio and call tone volume
Alimentation BUS/SCS 18-27 Vcc

Simple installation, 2-wires system
Immediate replacement of an old 2-wires internal unit, without additional work for the installer

With video	Yes
Installation technique	Bus system
Mounting method	Surface mounted
Material	Plastic
Picture system	PAL
Property picture system	Colour
With memory function	No
Overhear protected	No
Operation door lock	Yes
Control extra function(s)	Yes
Hands free	Yes
Function lamps	No
Can be connected to smartphone	No
Screen diagonal	127 mm
Screen diagonal (inch)	5 inch
Hearing aid compatible	No
With automatic door opener	No
Colour	White
Type of interface	Other
Mutable call tone	Yes
Internal communication	Yes
Specific call tone	Yes
Additional device connectable	Yes
Loudness setting	Yes
With touch screen	No
Width	164 mm
Height	165 mm
Depth	20.5 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
degree of impact strength (IK)	IK07

Degree of protection (IP)	Not applicable
Operating / setting temperature (Min-Max)	5-40 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	DC
Nominal voltage (Min-Max)	18-27 V
Supply current (Min-Max)	0.010-0.25 A
Frequency (Min-Max)	0-0 Hz
Sound level	82 dB
Standby consumption	10 mA
Halogen free	Yes
Antimicrobial treatment	No
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	0.1-2.5 mm²
Label space/information surface	No
Fitted with USB plug	Yes
Fitted with rainproof plate protection	No
With complemantary luminous signal	Yes
Control mode	Wired
Contains Batteries and/or Accumulator	No
Additional unit	Yes
Maximum number of additional screens	63
Addressable	Yes
Door entry system with mobile application	No
Number of ringtones	16
Remote opening of gate / Electric door opener	Yes
Screen resolution	Other
Screen brightness setting	Yes
Screen contrast setting	Yes
Camera type	Not applicable
IEC code (Pack1)	Not applicable
Battery ou Accumulator (Pack1)	Not applicable
Element Composition (Pack1)	Not applicable
Connected object	No
