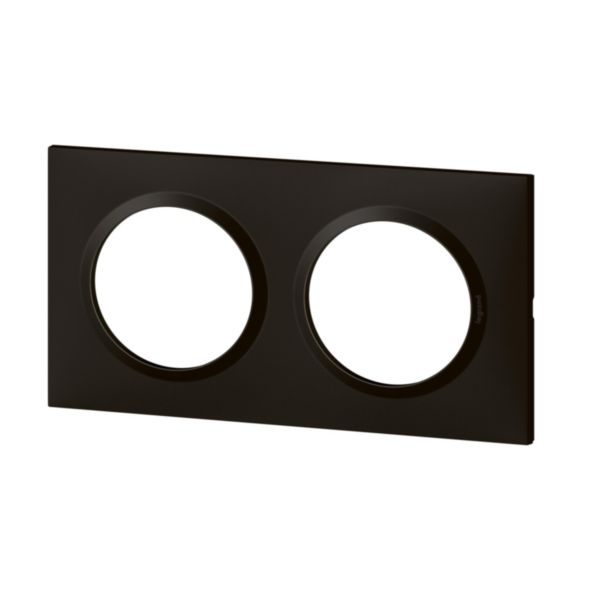

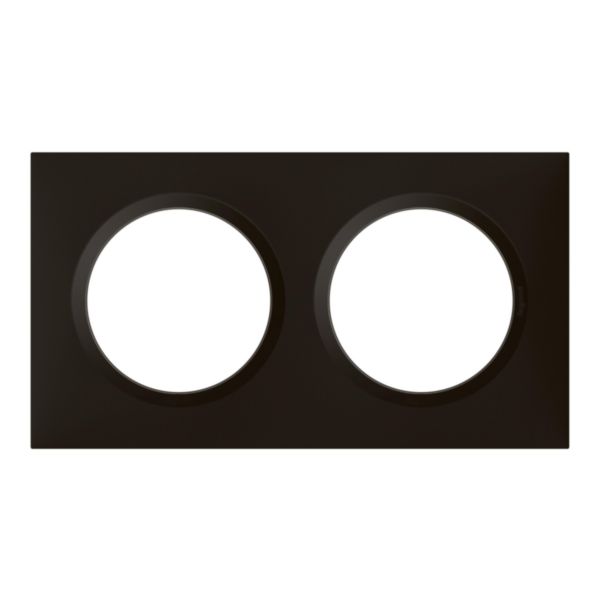

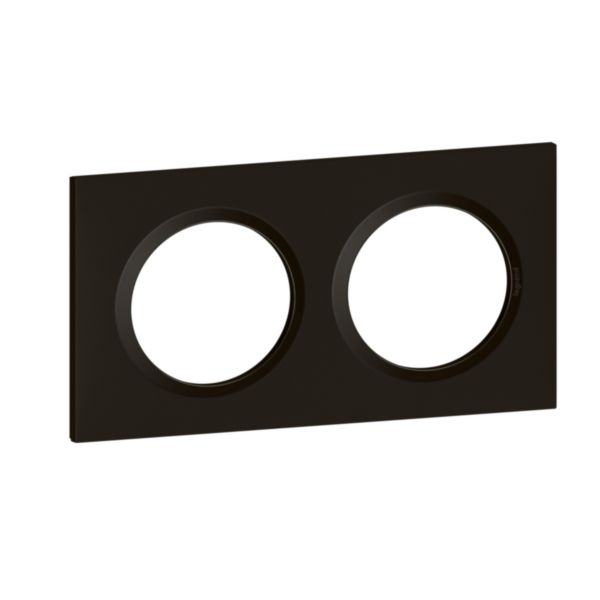

2 gang MATT black PLATE

Name: 2 gang MATT black PLATE
SKU: 600892

Legrand

REF. 600892 EAN. 3414972558556

Compare You can only compare 4 products, you must remove 1 to add this one

Number of units	2
Mounting direction	Horizontal and vertical
Number of units horizontal	2
Number of units vertical	1
Number of modules horizontal (module system)	4
Number of modules vertical (module system)	1
With mounting grid	No
Flush-mounted installation	Yes
Suitable for subfloor installation duct box	No
Suitable for wall duct	No
Suitable for built-in installation	No
Label space/information surface	No
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Lacquered
Surface finishing	Matt

Colour	Black
Transparent	No
With hinged lid	No
Degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Type of fastening	Engage (snap)
Width	158 mm
Height	87 mm
Depth	10 mm
Inner diameter	53.6 mm
Built-in width	158 mm
Built-in height	0 mm
Diameter bore hole (opening)	53.6 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-25-60 °C
Latin wood species	Not applicable
Certification of wood (list)	Not applicable
Wood Climate area	Not applicable

1 document

Select all

BIM Data

BIM-LEGRAND-DOOXIE-2025-12-FRANCAIS.rvt rvt (59.9 Mo)

2 documents

Select all

PEP

LGRP-02049-V01.01-FR.pdf pdf (0.84 Mo)

Agreement

Decl. UE RED-A 4227 C (0.44 Mo)
