2 equipotential socket antimicrobial 2 modules white

LEGRAND

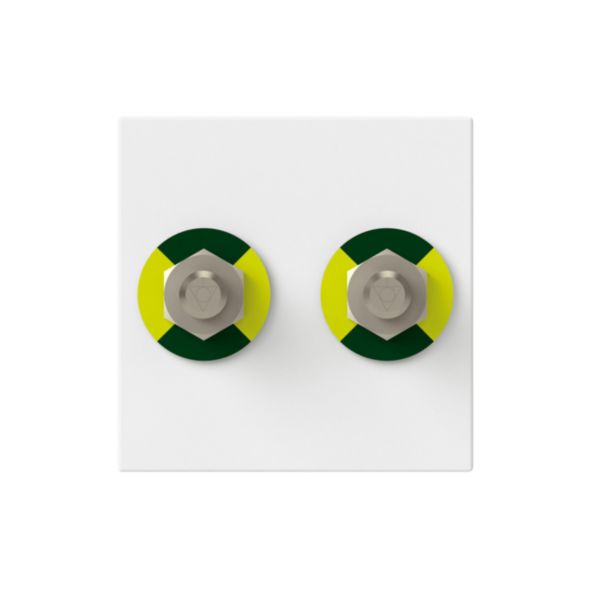

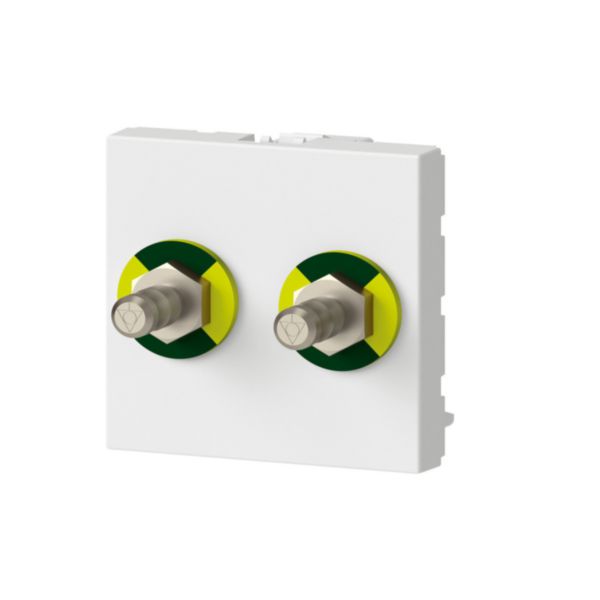

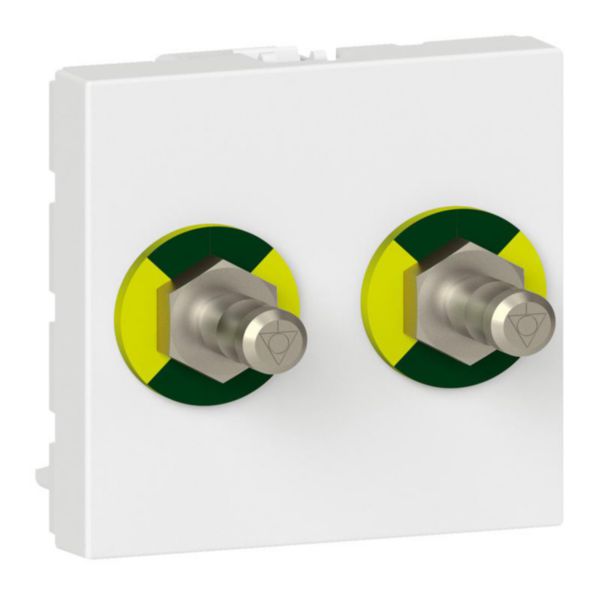

2 equipotential socket antimicrobial 2 modules white

REF. 078760L EAN. 3414971577695
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Antimicrobial treatment Yes
Assembly arrangement Basic element
Model Socket outlet 2-position
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Glossy
Colour White
RAL-number (similar) 9003
Transparent No
Width 45 mm
Height 45 mm
Depth 40 mm
Built-in depth 16 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP41
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Terminals capacity (Min-Max) 6-6 mm²

Documentation

3 documents
Technical Sheet
F01164FR-05.pdf pdf (0.28 Mo)
Technical Sheet
F01164EN-05.pdf pdf (0.28 Mo)
Instruction Use
LE03001AB.pdf pdf (0.13 Mo)
2 documents
Catalogue Commercial Page
ex223001_1183.pdf pdf (0.09 Mo)
Catalogue Commercial Page
ex223001_1205.pdf pdf (0.09 Mo)
4 documents
BIM Data
BIM Data
BIM Data
BIM Data
