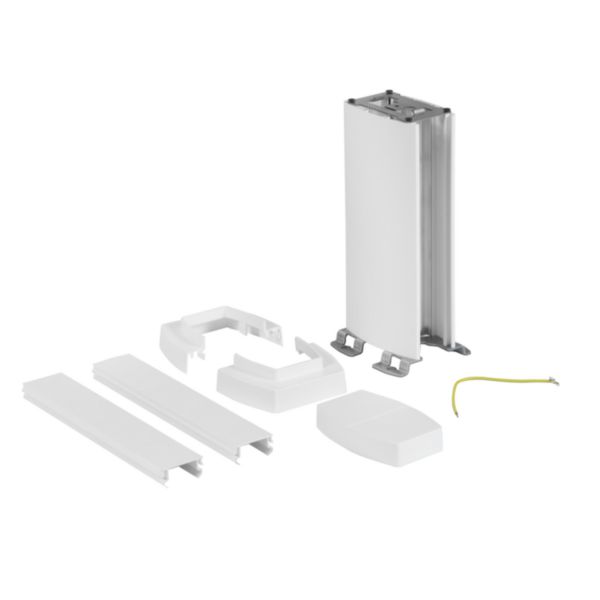

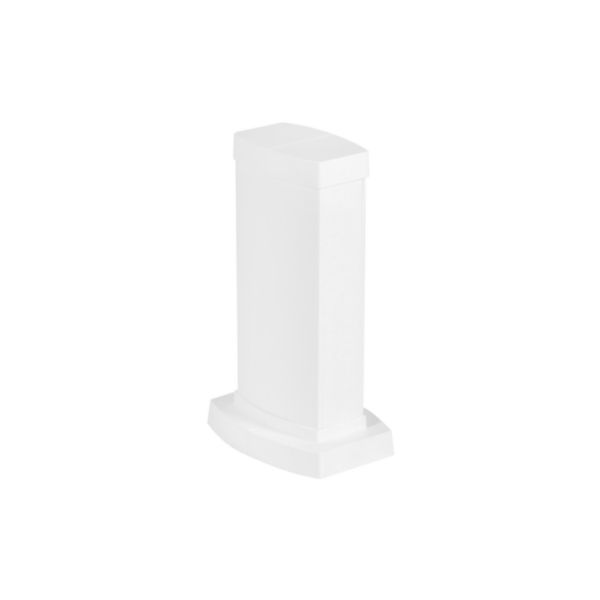

2 compartments snap-on mini-column. White finish. 0,30m

LEGRAND

2 compartments snap-on mini-column. White finish. 0,30m

REF. 653020 EAN. 3414971194731
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • IK8 for aluminium body
  • IK7 system (body+cover)
  • An Ovaline extension kit allowing the arrival of ceiling cables
Recommendation / Restriction
  • Can not be installed outside.

The product's benefits

Installation
  • Ability to add a wide choice of accessories: tablets, foot, foot + wheels, ovaline kit…
Usage
  • Can be equipped with a metalic 6kg-foot (cat.nos 653086 white or 653087 grey) to transform it on movable mini-column.
Avantages
  • Can be equipped with a floor duct (white cat.no 030088, black cat.no 090090 or grey cat.no 030093

Technical characteristics

Pillar shape Oval
Model Double-sided
Pre-wired No
Adjustable No
Height levelling 0 mm
Column height 300-300 mm
Number of usable covers 2
Cover width 45 mm
Type of fastening Screwing
Place variable No
Suitable for ceiling mounting No
Suitable for floor mounting Yes
Cable entry Bottom
Through-going profile Yes
Material installation column Aluminium
Material quality installation column Other
Material installation column halogen free Yes
Surface protection column Other
Colour column White
RAL-number column 9003
Material cover Plastic
Material quality cover Polyvinyl chloride (PVC)
Material cover halogen free No
Cover surface Untreated
Colour top cover White
RAL-number cover 9003
Number of partitions 1
Usable cross section 6220 mm²
