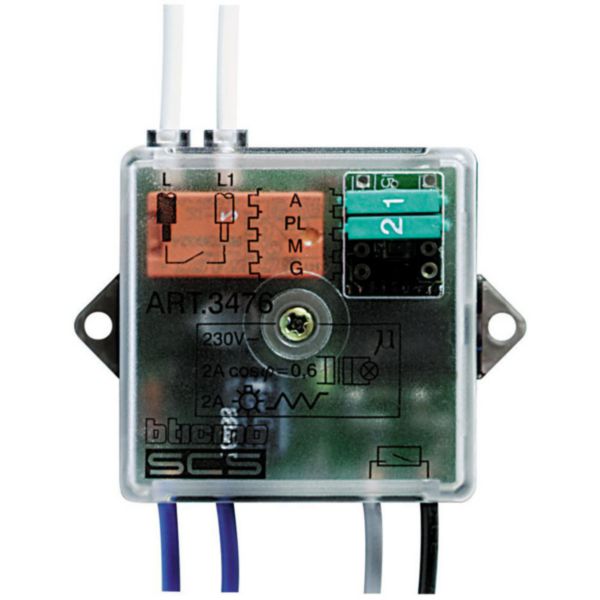

1 relay actuator for single loads.

My Home Up BTICINO

1 relay actuator for single loads.

REF. 3476 EAN. 8012199653129
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • 1 contact
  • Rated voltage 27 V d.c.
  • Rated current 0,013 A

Technical characteristics

Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency No
Bus system LON No
Bus system Powernet No
Other bus systems Other
Mounting method Wall duct
Local operation/hand operation Yes
With LED indication Yes
Number of digital inputs 1
Suitable for C-load No
Max. number of switching contacts 1
Rated current 2 A
Rated operating voltage (Min-Max) 230-230 V
Different phases connectable No
With bus connection Yes
Modular expandability No
Degree of protection (IP) IP20
Connected object No
Product use function Control & command systems

Documentation

3 documents
Technical Sheet
ST-00000915-EN.pdf pdf (0.18 Mo)
Technical Sheet
ST-00000915-FR.pdf pdf (0.19 Mo)
Technical Sheet
MQ00077-d-UK.pdf pdf (0.11 Mo)
2 documents
Catalogue Technical Page
ex223001_0646.pdf pdf (0.04 Mo)
Catalogue Commercial Page
ex223001_0645.pdf pdf (0.07 Mo)
