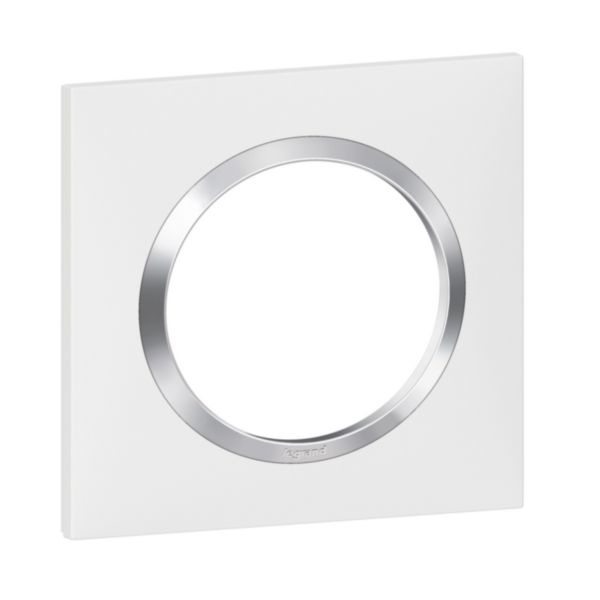

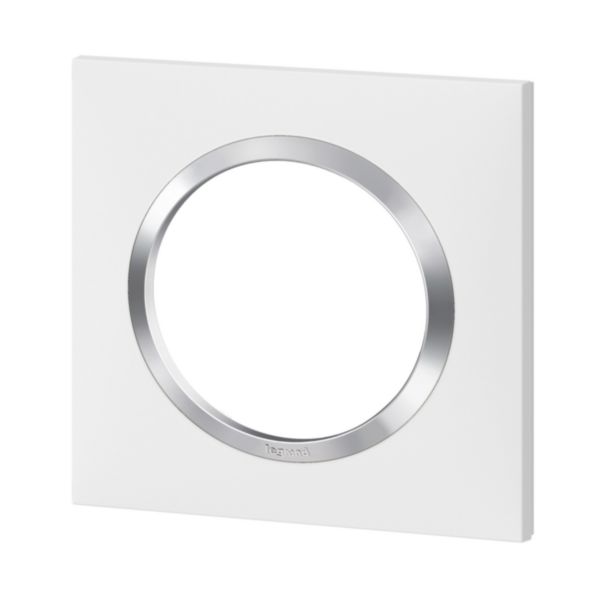

Name: 1 gang chrom ring white plate
SKU: 600841

1 gang chrom ring white plate

Legrand

1 gang chrom ring white plate

REF. 600841 EAN. 3414971020108

Finition :

Aluminium

Chrome Ring White

Matt black

White

Wood Style

Number of units :

Compare You can only compare 4 products, you must remove 1 to add this one

Number of units	1
Mounting direction	Horizontal and vertical
Number of units horizontal	1
Number of units vertical	1
Number of modules horizontal (module system)	2
Number of modules vertical (module system)	1
With mounting grid	No
Flush-mounted installation	Yes
Suitable for subfloor installation duct box	No
Suitable for wall duct	No
Suitable for built-in installation	No
Label space/information surface	No
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Decor
Surface finishing	Matt
Colour	White

RAL-number (similar)	9003
Transparent	No
With hinged lid	No
Degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Type of fastening	Engage (snap)
Width	87 mm
Height	87 mm
Depth	10 mm
Inner diameter	53.6 mm
Built-in width	0 mm
Built-in height	0 mm
Diameter bore hole (opening)	53.6 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-25-60 °C
Latin wood species	Not applicable
Certification of wood (list)	Not applicable
Wood Climate area	Not applicable

1 gang chrom ring white plate
