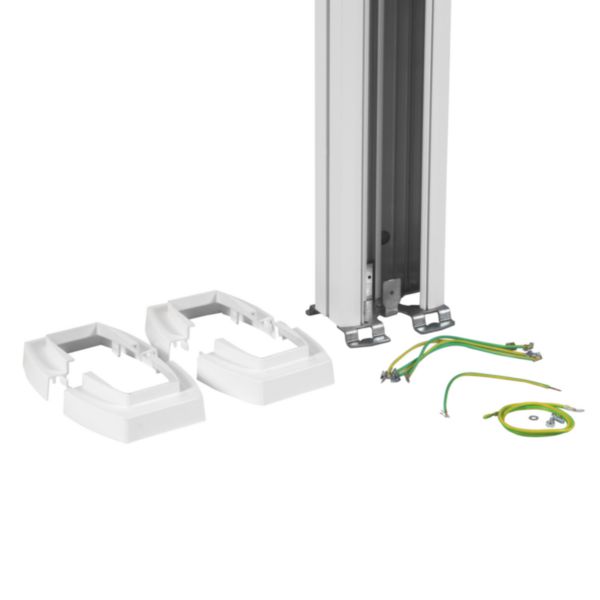

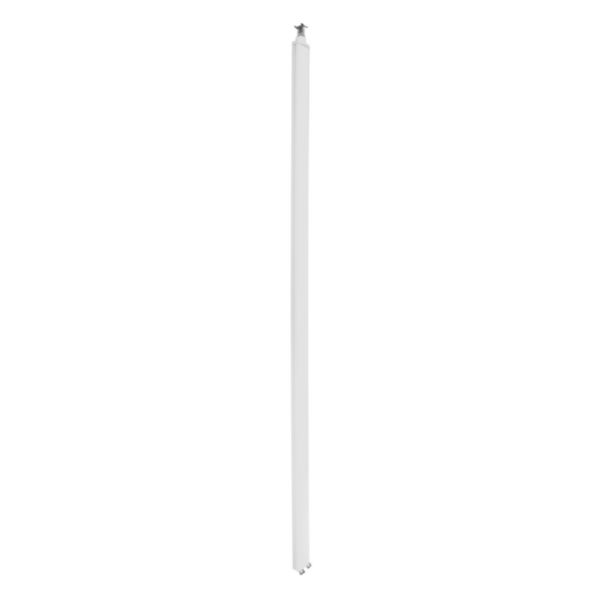

1 compartment Universal column. Aluminium body and cover. 2,7m to 3,9m. White finish
LEGRAND
1 compartment Universal column. Aluminium body and cover. 2,7m to 3,9m. White finish
REF. 653110
EAN.
3414971195301
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Pillar shape | Rectangular |
|---|---|
| Model | Single-sided |
| Pre-wired | No |
| Adjustable | Yes |
| Height levelling | 1280 mm |
| Column height | 2770-4050 mm |
| Number of usable covers | 1 |
| Cover width | 80 mm |
| Type of fastening | Screwing |
| Place variable | No |
| Suitable for ceiling mounting | Yes |
| Suitable for floor mounting | Yes |
| Cable entry | Atop |
| Through-going profile | No |
| Material installation column | Aluminium |
|---|---|
| Material quality installation column | Other |
| Material installation column halogen free | Yes |
| Surface protection column | Other |
| Colour column | White |
| RAL-number column | 9003 |
| Material cover | Aluminium |
| Material quality cover | Other |
| Material cover halogen free | Yes |
| Cover surface | Other |
| Colour top cover | White |
| RAL-number cover | 9003 |
| Number of partitions | 0 |
| Usable cross section | 6900 mm² |
