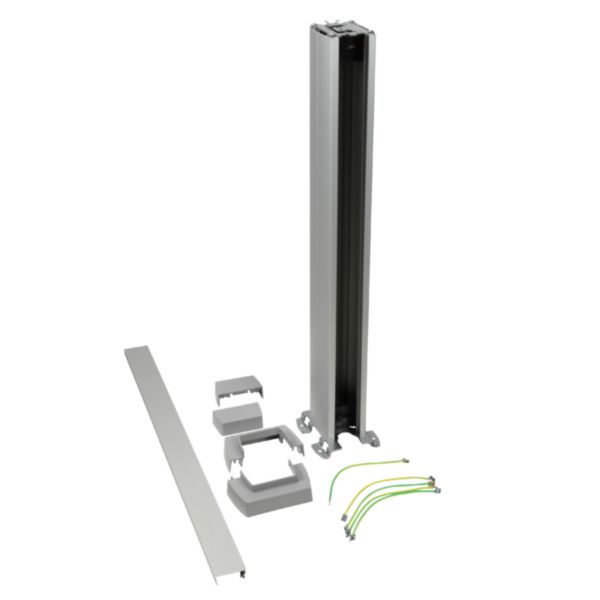

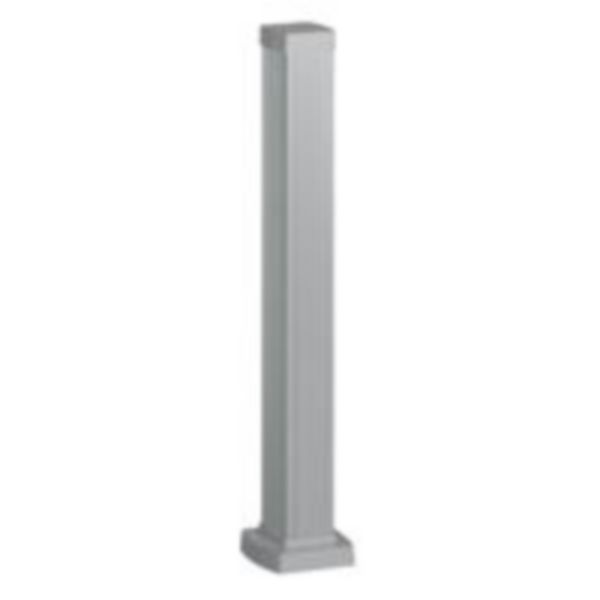

Name: 1 compartment, 2 sides Snap-on mini-columns. Aluminium. 0,68m
SKU: 653004

1 compartment, 2 sides Snap-on mini-columns. Aluminium. 0,68m

LEGRAND

1 compartment, 2 sides Snap-on mini-columns. Aluminium. 0,68m

REF. 653004 EAN. 3414971194625

Compare You can only compare 4 products, you must remove 1 to add this one

IK8 for aluminium bodies
IK7 system (body+cover)
Xcore concept (Legrand patent) allows an unrivaled thinness of the mini - columns.
An accessory finishing kit for telescopic pole allows to dress up the pole and hide cables

The Xcore structure of the columns body allows to connect sockets back-to-back (on both sides) of the column.

Can be equipped with a metalic 6kg-foot (cat.nos 653086 white or 653087 grey) to transform it on movable mini-column.

Pillar shape	Square
Model	Double-sided
Pre-wired	No
Adjustable	No
Height levelling	0 mm
Column height	680-680 mm
Number of usable covers	2
Cover width	45 mm
Type of fastening	Screwing
Place variable	No
Suitable for ceiling mounting	No
Suitable for floor mounting	Yes
Cable entry	Bottom

Through-going profile	Yes
Material installation column	Aluminium
Material quality installation column	Other
Material installation column halogen free	Yes
Surface protection column	Anodised
Colour column	Other
Material cover	Aluminium
Material quality cover	Other
Material cover halogen free	No
Cover surface	Untreated
Colour top cover	Other
Number of partitions	0
Usable cross section	2880 mm²

1 compartment, 2 sides Snap-on mini-columns. Aluminium. 0,68m
