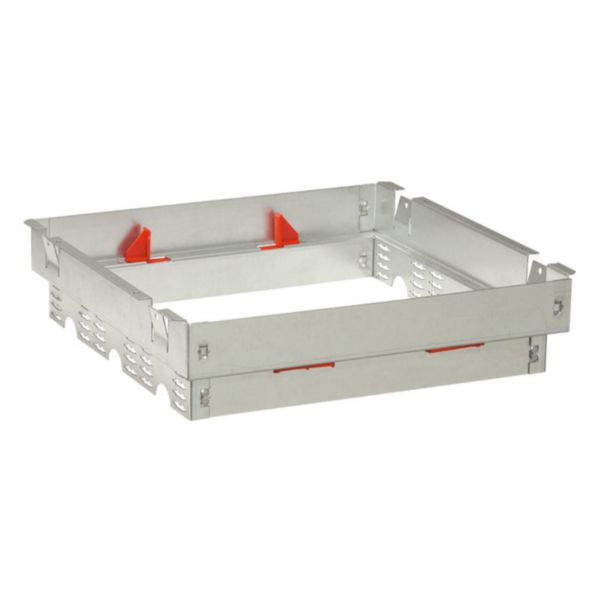

Name: Support frame for modular backbox for raised floors - 3 compartments
SKU: 689639

Support frame for modular backbox for raised floors - 3 compartments

LEGRAND

Support frame for modular backbox for raised floors - 3 compartments

REF. 689639 EAN. 3245066896397

Compare You can only compare 4 products, you must remove 1 to add this one

Floor boxes for carpet - Conform to IEC/EN 60670 - 23 - Compatible with either raised access floor trunking system and screed floor system
Modular backbox for raised floors - Adjustable height between 86 to 107 mm - To be fitted with lid and trims for carpet and support plates for Arteor or Mosaic Programme wiring Accessories - Backboxes are connected to the raised floor trunking system with flexible conduits - One complete assembly consists of : support frame + modules + lid and trim Support frame - To be equipped with modules - 3 compartments (264 x 264 mm)

Cover model	Square
Number of device cups	1
Number of socket outlets with protective contact CEE 7/3 (type F)	0
Number of socket outlets British Standard BS1363	0
Housing material	Other
Degree of protection (IP)	IP20
With opening carpeting	Yes
Depth of flooring recess	8 mm
Protective frame carpeting	No
Colour	Other
Suitable for subfloor duct	Yes
Suitable for hollow floor	Yes
Suitable for double floor built-in	Yes

Suitable for wet cleaning	No
Outer width	325 mm
Outer length	325 mm
Length built-in dimension	266 mm
Width built-in dimension	266 mm
Min. built-in depth	65 mm
Depth	67 mm
Number of rows	3
Degree of impact strength (IK)	IK08
Operating / setting temperature	-5-60 °C
Storage temperature	-25-60 °C
Halogen free	Yes
Fitted with USB plug	No

Support frame for modular backbox for raised floors - 3 compartments
