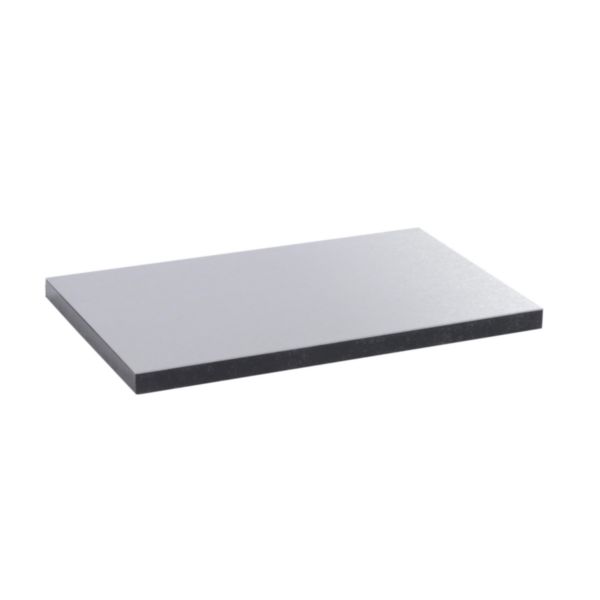

Stainless steel finishing plate - Frame and lid metal 12/18M - 248mm length - Brushed stainless steel - 500N load resistance

LEGRAND

Stainless steel finishing plate - Frame and lid metal 12/18M - 248mm length - Brushed stainless steel - 500N load resistance

REF. 088046 EAN. 3414970755438

Finishing plate for standard floor box lid, brushed stainless steel for durability, 8mm thickness and 500N load resistance for enhanced protection. Easy adhesive tape installation, ideal for demanding commercial environments.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Finishing plate for standard floor box lid, brushed stainless steel for durability, 8mm thickness and 500N load resistance for enhanced protection. Easy adhesive tape installation, ideal for demanding commercial environments.

Product characteristics
  • 8mm stainless steel plate ensures precise fit and optimal compatibility with the floor box lid
  • Quick installation enabled by two pre-applied industrial adhesive tapes for secure mounting
  • Brushed stainless steel finish provides enhanced corrosion resistance and professional aesthetics
  • Tested global load resistance of 500N (vertical load applied through a small surface) for robust performance
  • Dimensions 248x154x7.5mm, suitable for standard 12/18 module metal floor boxes
Recommendation / Restriction
  • Indoor use only.

The product's benefits

Installation
  • Floor box modular to compose: matchs with your needs (type of installation, number of modules, finishes), gives time for reflexion, protects the product during the progression of the work site (the installation follows the steps of the site).
Usage
  • Excellent daily robustness (wheel of office chair, furniture…). IK08: Protection against choc energy until 5joules

Technical characteristics

Cover plate length 248 mm
Application Surface tank
Number of single openings 0
Number of double openings 0
Number of triple openings 0
Number of CEE-/perilex openings 0
Number of square openings 0
Number of round openings 0
Number of oval openings 0
Installation technique Other
Type of fastening Other
Blind plate Yes
With label area No
Suitable for label area No
Material Stainless steel
Colour Stainless steel
Width 154 mm
Height 7.5 mm

Documentation

8 documents
Technical Sheet
F03331FR-03.pdf pdf (4.42 Mo)
Technical Sheet
F03331EN-03.pdf pdf (4.4 Mo)
Technical Sheet
F03334EN-03.pdf pdf (6.96 Mo)
Technical Sheet
F03334FR-03.pdf pdf (7.11 Mo)
Technical Sheet
F04321EN-01.pdf pdf (8.05 Mo)
Technical Sheet
F04319FR-01.pdf pdf (3.62 Mo)
Technical Sheet
F04319EN-00.pdf pdf (3.61 Mo)
Technical Sheet
F04321FR-02.pdf pdf (8.12 Mo)
4 documents
Catalogue Technical Page
ex223001_1143.pdf pdf (0.46 Mo)
Catalogue Commercial Page
ex223001_1140.pdf pdf (0.12 Mo)
Catalogue Technical Page
ex223001_1142.pdf pdf (0.51 Mo)
Catalogue Technical Page
ex223001_1144.pdf pdf (0.05 Mo)
10 documents
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
BIM Data
3D Autocad
3D_LG-088046.stp ifc (0.03 Mo)
