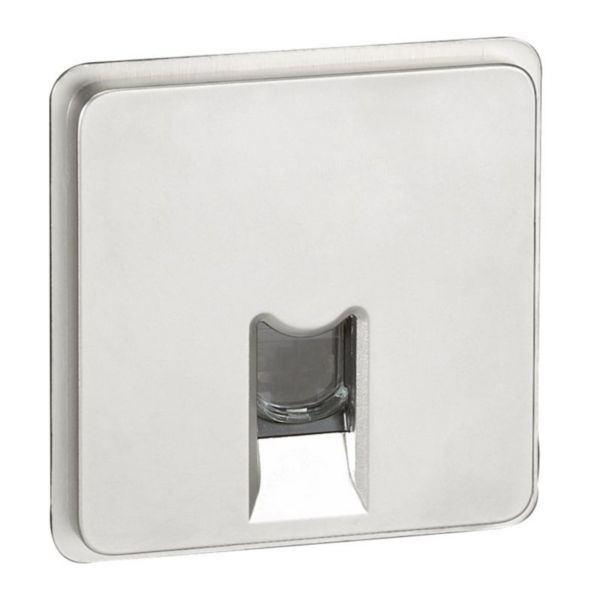

Name: Soliroc™ - RJ45 socket category 6 FTP IP20
SKU: 077891

Soliroc™ - RJ45 socket category 6 FTP IP20

Soliroc™ LEGRAND

Soliroc™ - RJ45 socket category 6 FTP IP20

REF. 077891 EAN. 3245060778910

Compare You can only compare 4 products, you must remove 1 to add this one

Category 6 FTP : Data rate up to 1 GigaBit/s. This allows you to download a 1 GigaBytes file in 8 seconds.
The plate is deliberately thin, thereby limiting the amount ofpossible grip and reducing the risk of attempted tear - off. There is minimal space between parts, guaranteed by the IP5X rating (impenetrable by solid bodies greater than 1 mm in diameter and protected against dust) .
The IK10 rating (20 joule impact force) guarantees optimal resistance and protection against vandalism. It is impossible to tear off a SOLIROC switch due to the use of four zamak sealing plugs on the plate (removable only by drilling).
2 modules

Suitable for public buildings, unsupervised passageways, car parks, communal areas in buildings. We recommend using 50 mm-deep multi-material or concrete BATIBOX mounting boxes (40 mm accepted). To guarantee the best tear-off resistance, attach the SOLIROC plates using 4 standard screws (4 mm diameter, 40 mm length), select wall plugs according to the nature of the walls. For concrete walls, we recommend expanding nylon wall plugs (6 mm diameter, useful length 40 mm). Conform to standards ISO/IEC 11801 Ed. 3.0, EN 50173-1 and TIA/EIA 568 C

Can be integrated in all supports. With connector with fast connection thanks to integrated crimping take AWG 22 single-core cables up to AWG 26 and AWG multicore cables.

The IP55 rating guarantees a long useful lifetime whether indoors or outdoors. All external parts are made of zamak for optimal robustness. the plate is deliberately thin, thereby limiting the amount of possible grip and reducing the risk of attempted tear-off. There is minimal space between parts, guaranteed by the IP5X rating (impenetrable by solid bodies greater than 1 mm in diameter and protected against dust.

Surface mounting	No
Flush-mounted installation	Yes
Duct installation	No
Floor box/subfloor mounted	No
Type of fastening	Engage (snap)
Assembly arrangement	Basic element with central cover plate
Type of connector	RJ45 8(8)
With buses/couplings	Yes
Suitable for number of connectors	1
Category	6
Colour	White
RAL-number	0
Connection type	Insulation displacement connector
Shielded buses	No
Separate earthing connection	No
With label space	No
Separate strain relief	No
Mounting method shielding connection	None
Outlet direction	Straight
With dust cover	Yes

Degree of protection (IP)	IP55
Colour coding	Yes
Device width	70.4 mm
Device height	70.4 mm
Device depth	36.8 mm
Number of modules (module system)	2
Built-in depth	25.2 mm
Degree of impact strength (IK)	IK10
Operating / setting temperature	-5-40 °C
Storage temperature	-10-70 °C
Terminal marking indication	Yes
Halogen free	Yes
Antimicrobial treatment	No
Mounting method	Flush-mounted
Tube diameter for wall mounted product	0-0 mm
Maximum Input cable diameter	9 mm
Entry membrane gland type	Not applicable
Vertical fixing center distance	0-0 mm
Horizontal fixing center distance	0-0 mm
Cable support	Not applicable
