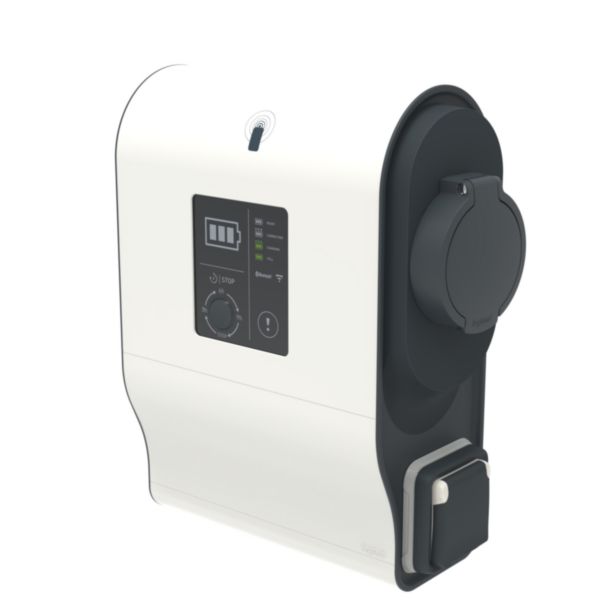

Name: Single-phase plastic Green'up Premium charging stations for 1 electric car - Mode 3 - 3.7kW to 4.6kW - 16A to 20A
SKU: 059070

Single-phase plastic Green'up Premium charging stations for 1 electric car - Mode 3 - 3.7kW to 4.6kW - 16A to 20A

Green up LEGRAND

Single-phase plastic Green'up Premium charging stations for 1 electric car - Mode 3 - 3.7kW to 4.6kW - 16A to 20A

REF. 059070 EAN. 3414972345316

Compare You can only compare 4 products, you must remove 1 to add this one

Thanks to Communication kit and RFID reader already mounted, this charging station is ready to use by several users (badges access) and can be control remotely through IP network
Protection 6mA DC embedded against residual direct current that allow tu use upstream RCD type A or F
Possibility to control of hours or low hours by command such as contactor, clock, switch (dry contact input 12 V)
Possibility of adjusting the delivered power. (3.7/4.6 kW) or (16/20 A)
Deferred start of the charge (3/6/9) by simply pushing on the front panel of the charging station

Charging station ready to installed with its communication kit and RFID reader alredy embedded and mounted.Supplied with wall mounting kit. For floor mounting, specific pedestral ref. 0 590 52 in option.

The Green'up Premium charging stations allows you to recharge cars in mode 2 and/or mode 3, . Connected to the IP or Wifi network with the communication kit, it allows remote control from a smartphone, a digital tablet or a PC. The RFID reader will be able to read different 13,56MHz badges to give access to the charge. Thanks to OCPP protocol embedded, the charging station can be supervised by charging point operator.

Update of the charging station accessible easily with the Bluetooth application for the whole range.
Charging station ready to use with its communication kit and RFID reader alredy embedded and mounted.

Installation side connection model	Single phase
Nominal connection power	3.7 kW
Number of charging units	1
Max. power per charging point	4.6 kW
Width	295 mm
Height	365 mm
Depth	140 mm
Mounting method	Wall mounting
Number of vehicle connectors Type 1	0
Number of vehicle connectors Type 1 CCS	0
Number of vehicle connectors Type 2	0
Number of vehicle connectors Type 2 CCS	0
Number of socket outlets Type 2	1
Number of vehicle connectors GB AC	0
Number of vehicle connectors GB DC	0
Number of socket outlets GB	0
Number of socket outlets Type 3	0
Number of vehicle connectors CHAdeMO	0
Number of CEE socket outlets	0
With house connection box	No
Number of household socket outlets	1
Number of earth leakage circuit breakers type A	0
Length of charging cable	0 m
Number of earth leakage circuit breakers type B	0

With miniature circuit breaker (MCB)	No
With energy meter	No
With display	No
Housing material	Plastic
Degree of protection (IP)	IP44
Degree of impact strength (IK)	IK08
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Operating / setting temperature	-25-50 °C
Storage temperature	-25-70 °C
Nominal voltage	220-240 V
Colour	White
Connected object	Yes
Operating method	Bluetooth , Modbus , Network , Wifi network , OCPP 1.6J
Application store for download	Google Play Store , App Store
Programming way	Web software
Programmable	Yes
Interoperable connection Protocol	Yes
With voice command	No
Connectable by Internet box	No
Application name	EV Charge
Product use function	Energy distribution

Single-phase plastic Green'up Premium charging stations for 1 electric car - Mode 3 - 3.7kW to 4.6kW - 16A to 20A
