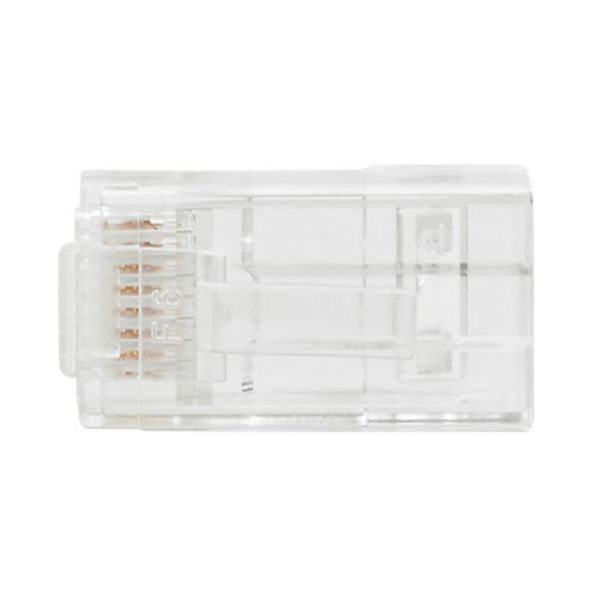

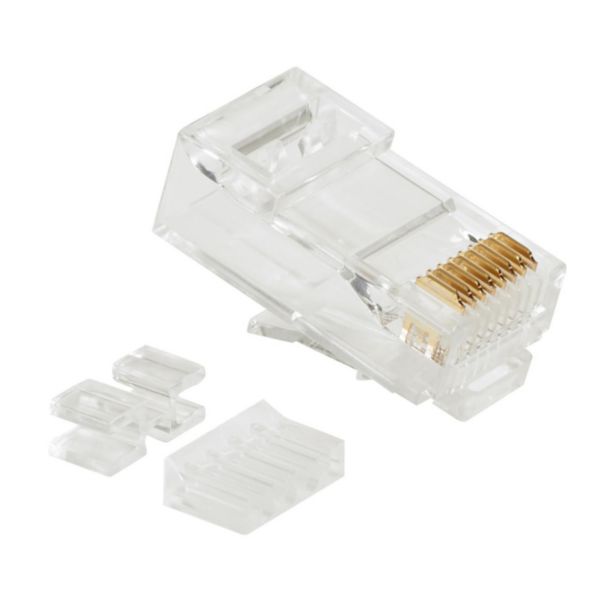

RJ45 field plug to be crimped Category 6 UTP
LCS³
LEGRAND
RJ45 field plug to be crimped Category 6 UTP
REF. 051710
EAN.
3414972093903
RJ plugs for RJ11, RJ12 and RJ45 sockets, 2 crimping zones, sleeve and conductor. RJ45 : modular jack 8P8C ( 8 positions and 8 electrical contacts) commonly used for Ethernet connections, and for telephone connectors.
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Model | Plug |
|---|---|
| Type of connector | RJ45 8(8) |
| Screened | No |
| Category | 6 |
| Connection type | Crimp |
| Special tool necessary | Yes |
| Suitable for round cable | Yes |
| Suitable for flat cable | Yes |
| Suitable for litz wire conductor | Yes |
| Suitable for solid conductors | No |
| Colour | Other |
| AWG-range | 23-26 |
| Width | 11.68 mm |
|---|---|
| Height | 11.07 mm |
| Depth | 22.8 mm |
| Degree of protection (IP) | IP20 |
| Operating / setting temperature | -40-80 °C |
| Storage temperature | -40-80 °C |
| Terminal marking indication | No |
| Antimicrobial treatment | No |
| Label space/information surface | No |
| Mounting method | Not applicable |
| Maximum Input cable diameter | 6.5 mm |
| Entry membrane gland type | Not applicable |
