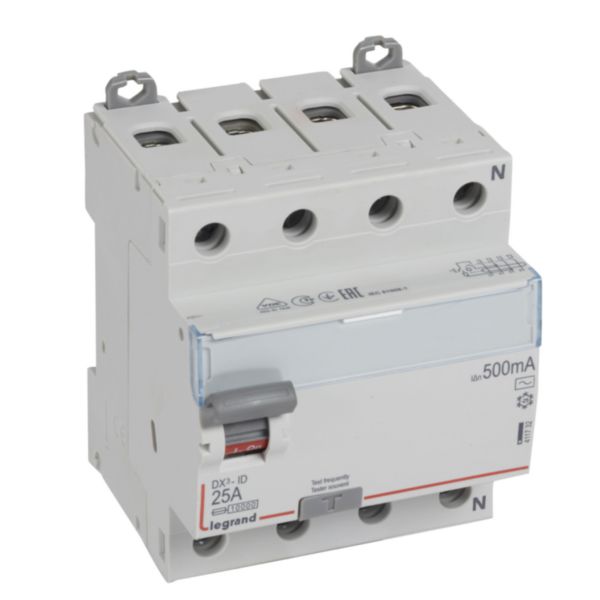

Name: RCD DX³-ID - 4P 400 V~ neutral right hand side - 25 A - 500 mA - AC type
SKU: 411732

RCD DX³-ID - 4P 400 V~ neutral right hand side - 25 A - 500 mA - AC type

LEGRAND

RCD DX³-ID - 4P 400 V~ neutral right hand side - 25 A - 500 mA - AC type

REF. 411732 EAN. 3245064117326

Compare You can only compare 4 products, you must remove 1 to add this one

RCCBs - DX³ - ID - residual current circuit breakers 16 A to 100 A - AC, A, F and B types - Conform to IEC 61008 - 1, IEC 62423 (B type and F type) - Compatible with prong - type and fork type supply busbars - AC type : detect sinusoidal AC residual currents - A type : detect sinusoidal AC and pulsating DC residual currents - F type (High imm unity) : detect AC and pulsating DC residual currents - Enhanced imm unity to unwanted tripping in disturbed environments - Detection of high frequency fault currents - B type : detect sinusoidal AC, pulsating DC and smooth DC residual currents - Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
4-pole - 400 V~ - neutral on right - hand sideAC type - Sensitivity : 500 mA - In : 25 A - Number of modules : 4

Number of poles	4
Rated voltage	400 V
Rated current	25 A
Rated fault current	0.5 A
Rated insulation voltage Ui	500 V
Rated impulse withstand voltage Uimp	4 kV
Mounting method	DIN rail
Leakage current type	AC
Selective protection	No
Short-time delayed tripping	No
Short-circuit breaking capacity (Icw)	10 kA
Surge current capacity	0.25 kA
Voltage type	AC
With interlocking device	Yes
Frequency	50 Hz
Additional equipment possible	Yes
Degree of protection (IP)	IP20
Width in number of modular spacings	4
Built-in depth	44 mm

Ambient temperature during operating	-25-60 °C
Pollution degree	2
Connectable conductor cross section multi-wired	0.75-35 mm²
Connectable conductor cross section solid-core	0.75-50 mm²
RAL-number (similar)	7035
Explosion-proof	No
Width	71.2 mm
Height	83 mm
Depth	77.8 mm
Degree of impact strength (IK)	IK04
Storage temperature	-40-70 °C
Electric supplying direction	By the top or bottom
Terminal marking indication	Yes
Stress test conformity (1000V)	Yes
Colour	Grey
Halogen free	Yes
Connection type	Screwed terminal , Busbar and cable
Label space/information surface	Yes
