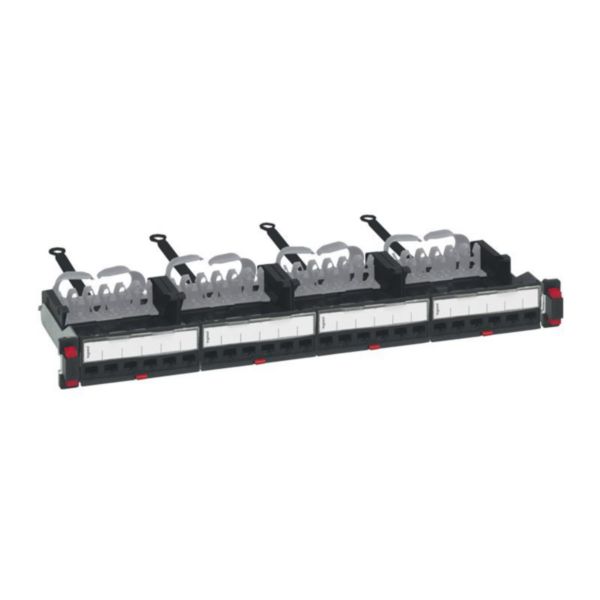

Name: Patch panel 19 inch - equipped with 24 RJ45 Category 5e FTP
SKU: 033751

Patch panel 19 inch - equipped with 24 RJ45 Category 5e FTP

LCS³ LEGRAND

Patch panel 19 inch - equipped with 24 RJ45 Category 5e FTP

REF. 033751 EAN. 3414970870322

Compare You can only compare 4 products, you must remove 1 to add this one

Equipped with 4 extractable cassettes each containing 6 connectors. Cat 5e FTP RJ45 quick - connect connectors (no tools required), with 568 A/B marking.
Equipped with rear cable guide to hold the cables.
19" panel - 1 U.
Supplied with coloured labels, white yellow, blue and red.
The panel ensure automatic earthing of each connector.

Front-panel and fast-snap accessibility of each individual connector provide ease and reliability for installation and maintenance. Universal and secured mounting on any cabinet or enclosure through new generation quick-fix anchorage. Automatic cassette removal by a simple button press. Hands-free cassette support during installation or maintenance while in the extracted position.

Daily user maintenance is rendered easy through the move-add-change management of each cassette and individual connector.

Save time at both installation and in daily maintenance by taking advantage of the screwless mounting and the automatic removal of each cassette.

Number of buses/couplings	24
Suitable for number of connectors	24
Type of connector	RJ45 8(8)
Screened	Yes
Category	5E
Connection type	Insulation displacement connector
Number of height units	1
Colour	Black
RAL-number	9017
Mounting method	482.6 mm (19 inch) mounting
Height	43.85 mm

Width	482.5 mm
Depth	321.7 mm
Degree of impact strength (IK)	IK03
Operating / setting temperature	-25-70 °C
Storage temperature	-40-70 °C
Terminal marking indication	Yes
Prewired	No
Cable nature for connection	Flexible or rigid
Label space/information surface	Yes
Cable support	With zigzag

Patch panel 19 inch - equipped with 24 RJ45 Category 5e FTP
