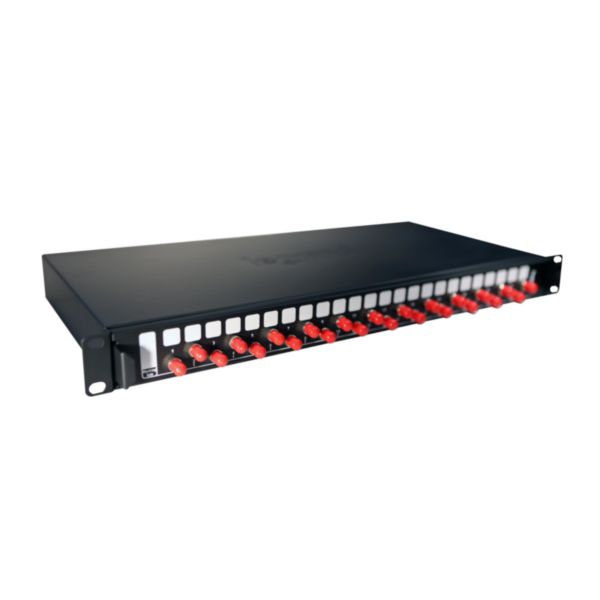

Optic drawer 19 inches 1U sliding equipped with 24 ST multi-mode connectors for 48 fibres

LCS³ LEGRAND

Optic drawer 19 inches 1U sliding equipped with 24 ST multi-mode connectors for 48 fibres

REF. 032163 EAN. 3414970958327

Metal 19 inches pre-equipped fibre optic drawers with 4 cable entries, supplied with screw fixing kit, 2 cable glands (diameter 13.5 and 16mm), coiling system and splicing cassette.

You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Suitable for number of couplings/adapters 24
Suitable for number of module inserts 24
With number of couplings/adapters 1
With front plate No
With housing No
With pigtails No
Fibre type Multi mode 62.5/125
Fibre class OM4
APC-version No
Type of connector external ST
Type of connector interior ST
Colour Black
Mounting method 482.6 mm (19 inch) mounting
Number of height units 1
Height 43.6 mm
Width 482.6 mm
Depth 238.6 mm

Documentation

3 documents
Technical Sheet
S000095448FR-00.pdf pdf (1.48 Mo)
Technical Sheet
S000095448EN-00.pdf pdf (1.08 Mo)
Instruction Use
LE09649AB.pdf pdf (3.4 Mo)
1 document
Catalogue Commercial Page
ex223001_1000.pdf pdf (0.13 Mo)
