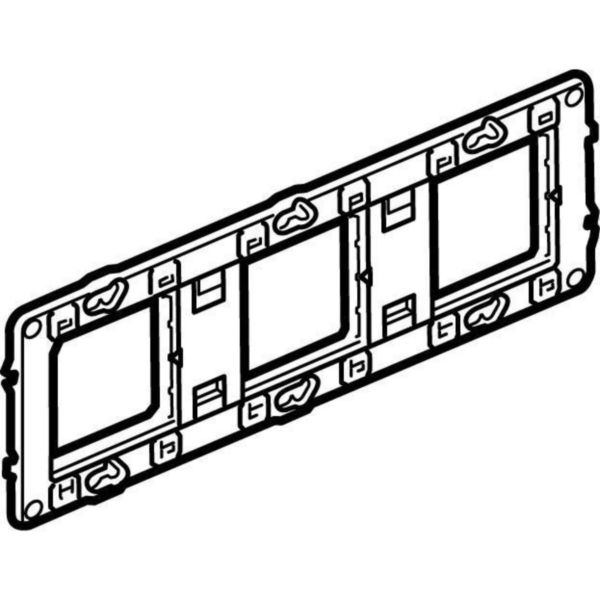

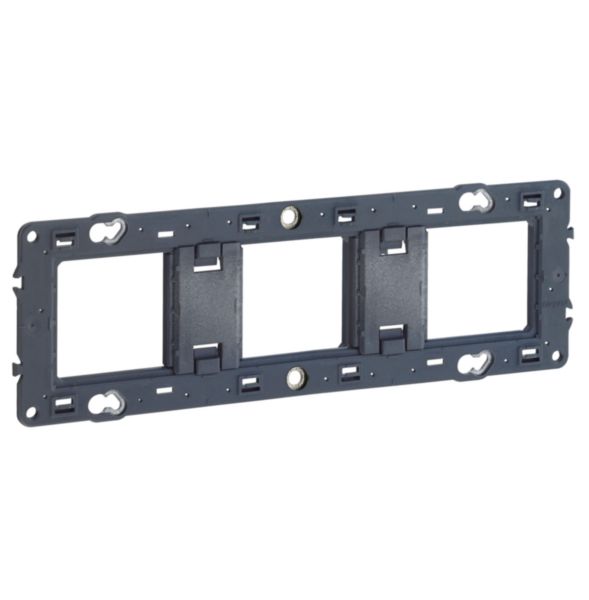

Mosaic™ - Support - with site protection - for 6, 8 or 3 x 2 horizontal/vert. mod.

Mosaic™ LEGRAND

Mosaic™ - Support - with site protection - for 6, 8 or 3 x 2 horizontal/vert. mod.

REF. 080253 EAN. 3245060802530
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • supports with site protection - For 6, 8 or 3 x 2 modules horizontal or vertical

Technical characteristics

Model Flush-mounted
Mounting method Mounting with screw
With nail No
Depth 15.7 mm
Height 77 mm
Number of modules horizontal (module system) 8
Number of modules vertical (module system) 1
With built-in installation box No
With screws No
Width 216 mm
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Mounting direction Horizontal and vertical
Material Metal
Material quality Other
Surface protection Galvanic/electrolytic zinc plated
Suitable for mounting on DIN-rail 35 mm No
Mounting method of the module inserts Front side
Suitable for mounting in round junction box 60 mm No

Documentation

2 documents
Technical Sheet
F00440FR-02.pdf pdf (0.66 Mo)
Technical Sheet
F00440EN-02.pdf pdf (0.66 Mo)
1 document
Catalogue Commercial Page
ex223001_1204.pdf pdf (0.18 Mo)
3 documents
BIM Data
BIM Data
BIM Data
32 documents
Agreement
Agreement
B.B.J-B/12/006/24 (3.34 Mo)
Agreement
B.B.J-B/12/048/21 (2.83 Mo)
Agreement
NF-NF012_4236 (0.53 Mo)
PEP
LGRP-00046-V01.01-FR.pdf pdf (0.74 Mo)
Agreement
PEP
LGRP-01211-V01.01-EN.pdf pdf (0.71 Mo)
PEP
LGRP-00045-V01.01-FR.pdf pdf (0.75 Mo)
Agreement
Agreement
OC / CB-FR_708376 (1.33 Mo)
PEP
LGRP-01197-V01.01-FR.pdf pdf (0.77 Mo)
Agreement
Agreement
Agreement
OC / CB-HU-005022 (0.62 Mo)
Agreement
PEP
LGRP-00991-V01.01-FR.pdf pdf (0.71 Mo)
Agreement
NF-NF012_2201/A2 (1.3 Mo)
Agreement
Agreement
NF-NF012_2513 (1.2 Mo)
PEP
LGRP-00942-V02.01-FR.pdf pdf (0.86 Mo)
Agreement
Agreement
AENOR-030/002285 (0.47 Mo)
Agreement
NF-NF012_4512 (0.86 Mo)
Agreement
OC / CB-FR_709703 (1.06 Mo)
Agreement
NF-NF012_2666/M1 (1.1 Mo)
Agreement
Agreement
Agreement
NF-NF012_2275/A2 (0.96 Mo)
Agreement
NF-NF012_4239 (0.53 Mo)
PEP
Agreement
B.B.J-B12/005/24 (4.62 Mo)
Agreement
