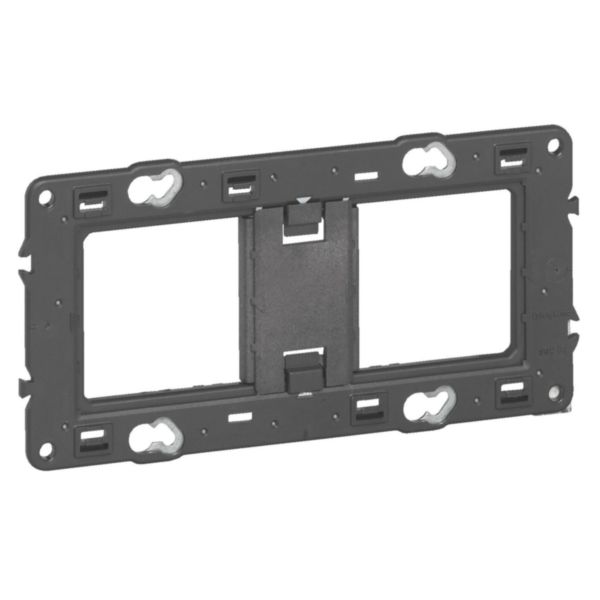

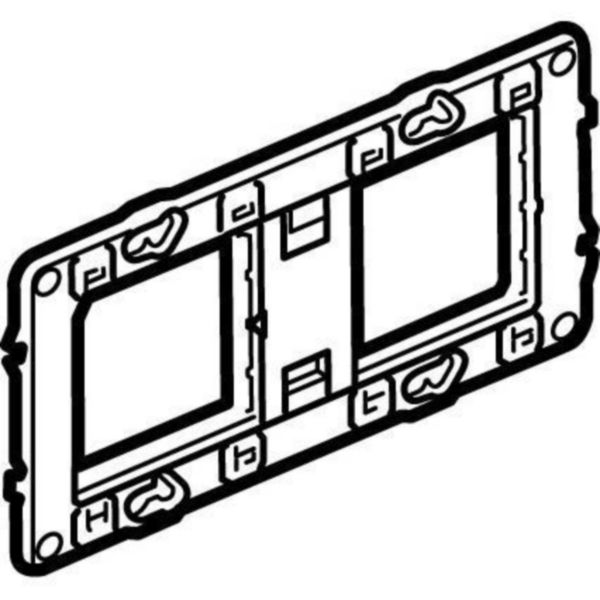

Mosaic™ - Support - with site protection - for 4, 5 or 2 x 2 horizontal/vert. mod.

Mosaic™ LEGRAND

Mosaic™ - Support - with site protection - for 4, 5 or 2 x 2 horizontal/vert. mod.

REF. 080252 EAN. 3245060802523
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • supports with site protection - For 4, 5 or 2 x 2 modules , horizontal or vertical

Technical characteristics

Model Flush-mounted
Mounting method Mounting with screw
With nail No
Depth 15.7 mm
Height 77 mm
Number of modules horizontal (module system) 5
Number of modules vertical (module system) 1
With built-in installation box No
With screws No
Width 145 mm
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Mounting direction Horizontal and vertical
Material Metal
Material quality Other
Surface protection Galvanic/electrolytic zinc plated
Suitable for mounting on DIN-rail 35 mm No
Mounting method of the module inserts Front side
Suitable for mounting in round junction box 60 mm No

Documentation

2 documents
Technical Sheet
F00440FR-02.pdf pdf (0.66 Mo)
Technical Sheet
F00440EN-02.pdf pdf (0.66 Mo)
1 document
Catalogue Commercial Page
ex223001_1204.pdf pdf (0.18 Mo)
