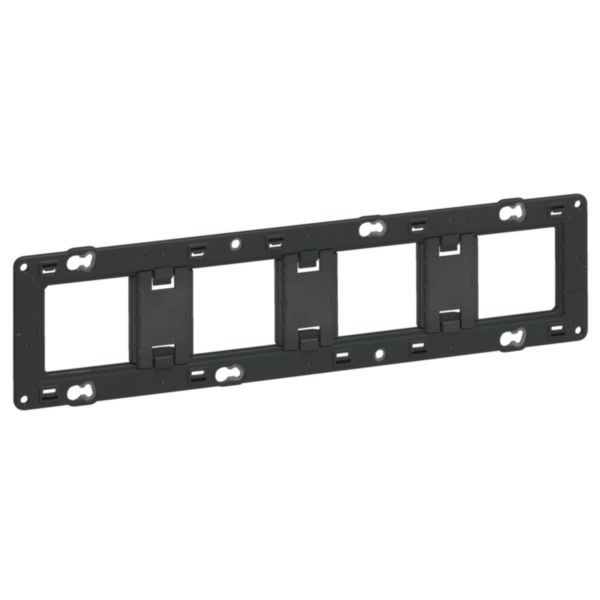

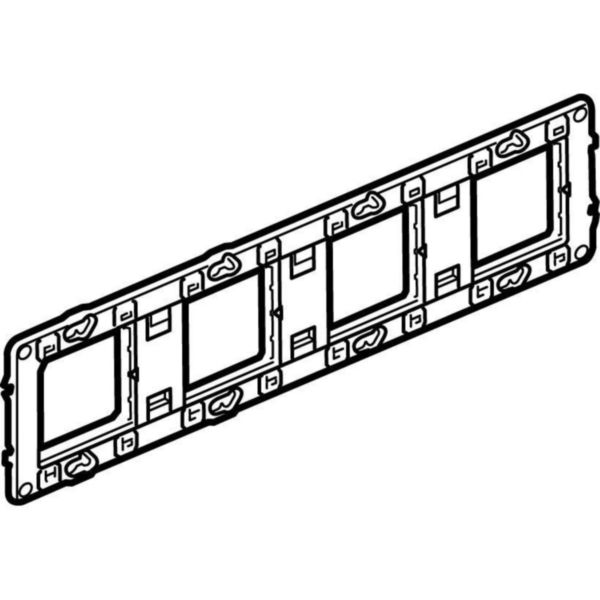

Mosaic™ - Support - with site protection - for 10 or 4 x 2 modules

Mosaic™ LEGRAND

Mosaic™ - Support - with site protection - for 10 or 4 x 2 modules

REF. 080254 EAN. 3245060802547
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • supports with site protection - For 10 or 4 x 2 modules

Technical characteristics

Model Flush-mounted
Mounting method Mounting with screw
With nail No
Depth 15.7 mm
Height 77 mm
Number of modules horizontal (module system) 10
Number of modules vertical (module system) 1
With built-in installation box No
With screws No
Width 284 mm
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Mounting direction Horizontal and vertical
Material Metal
Material quality Other
Surface protection Galvanic/electrolytic zinc plated
Suitable for mounting on DIN-rail 35 mm No
Mounting method of the module inserts Front side
Suitable for mounting in round junction box 60 mm No
