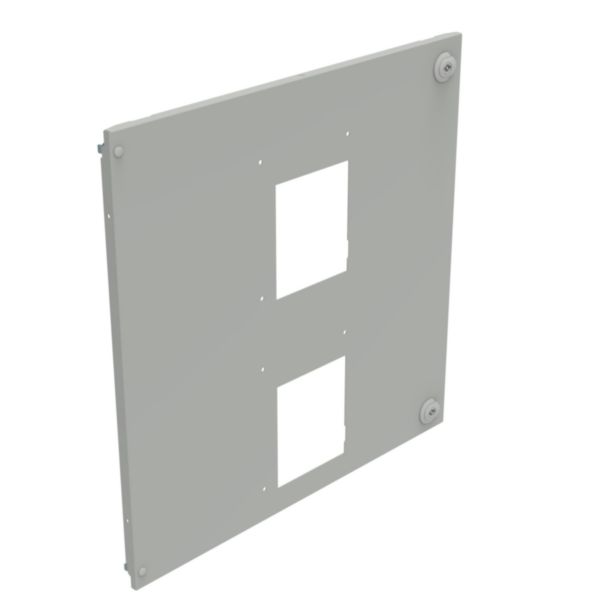

Metal faceplate for automatic transfer switch for XL³ S 4000 enclosures - for 2 draw-out DPX³ 630 in horizontal position

LEGRAND

Metal faceplate for automatic transfer switch for XL³ S 4000 enclosures - for 2 draw-out DPX³ 630 in horizontal position

REF. 021074 EAN. 3414970996244
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • Equipment for XL³ 4000 - for mounting on adjustable plates : DPX³ 630 plug - in, draw - out version or automatic transfer switches - Adjustable plates are used for front terminal/rear terminal connection and mounting of motor - driven or rotary handles
  • Metal faceplates for automatic transfer switches For draw - out DPX³ 630 In =orizontal position - For 2 devices

Technical characteristics

Width 600 mm
Height 600 mm
Suitable for enclosure building width 725 mm
Material Steel
Surface finishing Powder coating
Degree of impact strength (IK) IK07
Operating / setting temperature -5-40 °C
Storage temperature -5-40 °C
Colour Grey
RAL-number 7035
Halogen free Yes
Label space/information surface No

Documentation

1 document
Workshop Book
2 documents
Catalogue Commercial Page
ex223001_0388.pdf pdf (0.07 Mo)
Catalogue Technical Page
ex223001_0390.pdf pdf (0.44 Mo)
