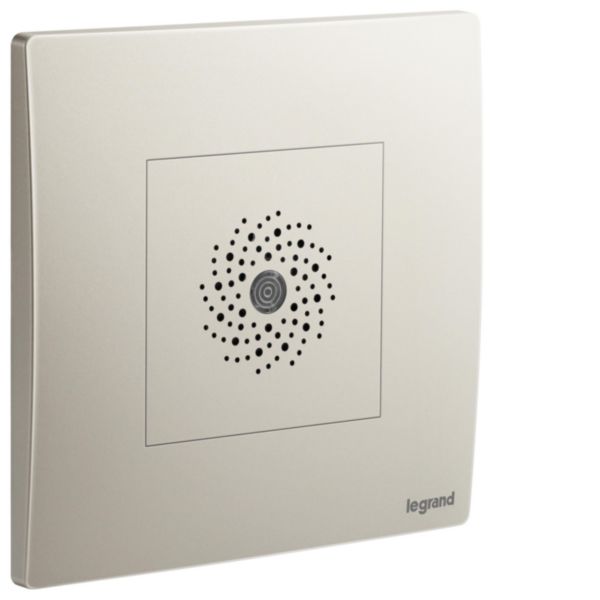

Mallia Senses - 1 gang sound light detector with neutral - 400 watts - Champagne
Mallia Senses
LEGRAND
Mallia Senses - 1 gang sound light detector with neutral - 400 watts - Champagne
REF. 281093CH
EAN.
3414972081924
Allows to switch on the light without touching the device. Sound in the room will turn the light on.
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Model | Other |
|---|---|
| Sensor type | Other |
| With DALI interface | No |
| Constant light control | Yes |
| HVAC-control | No |
| Forced switch on | No |
| Forced switch off | No |
| Animal zone | No |
| Creep-under protection | No |
| Background monitoring | No |
| Networkable | No |
| Scan angle | 360 ° |
| Optimum mounting height | 1.8 m |
| Staircase light controller | Yes |
| Bridging switch | No |
| Suitable for wireless transmission | No |
| Remote operation | No |
| Supplied remote control | No |
| Response value sensitivity adjustable | Yes |
| Response value luminosity adjustable | Yes |
| With signal unit | No |
| Teach-function for response value luminosity | No |
| Dim function with dimmer basic element | No |
| Mounting method | Flush-mounted |
| Suitable for ceiling mounting | No |
| Suitable for wall mounting | Yes |
| Connection type | Screwed terminal |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Antimicrobial treatment | No |
| Colour | Other |
| Transparent | No |
| Degree of protection (IP) | IP20 |
| Degree of impact strength (IK) | IK04 |
| Voltage type | AC |
| Frequency | 50-60 Hz |
|---|---|
| Nominal voltage | 240-240 V |
| Min. switch-on time | 30 s |
| Switch-off delay | 2 s |
| Switching-on delay | 0.5 s |
| Response value luminosity | 3-20 lx |
| Max. switching power | 200 W |
| Max. switching power LED | 100 W |
| Suitable for C-load | Yes |
| Temperature | -5-35 °C |
| Substation input | No |
| With alarm function | No |
| With acoustic sensor | No |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 40.4 mm |
| Built-in width | 48 mm |
| Built-in depth | 33.8 mm |
| Built-in length | 52.3 mm |
| Built-in diameter | 30 mm |
| Min. depth of built-in installation box | 35 mm |
| With connection cable | No |
| Connection cable length | 0 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -5-35 °C |
| Storage temperature | -20-70 °C |
| Standby consumption | 0.8 mA |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Terminals capacity | 1-4 mm² |
| Cable nature for connection | Flexible or rigid |
| Label space/information surface | No |
| Maximum Input cable diameter | 2.25 mm |
| Horizontal fixing center distance | 60.3-60.3 mm |
| Auto switch | Yes |
