Living Now - 6 modules support frame

Living Now BTICINO

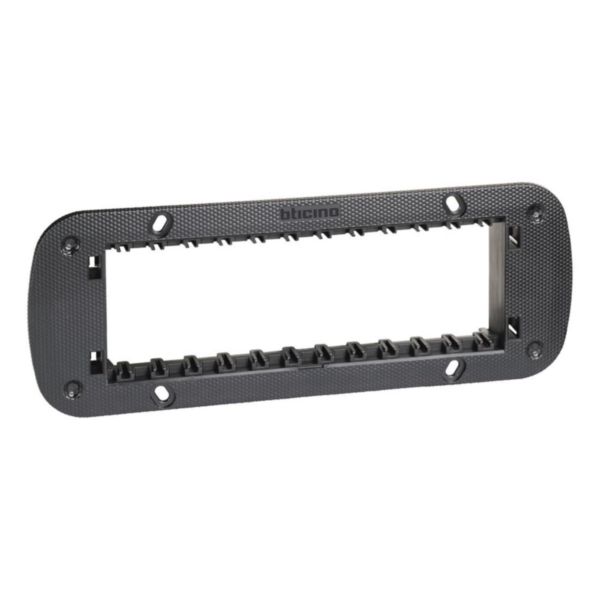

Living Now - 6 modules support frame

REF. BT-K4706 EAN. 8005543611128
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • Maximum rigidity of the technopolymer that makes up this support makes it easy to install it on the wall
  • Possibility of installation at half a step to guarantee maximum installation flexibility
  • Equipped with protective valve to guarantee a perfect result without scratching or dirtying
  • 6 modules, ultra-rigid black technopolymer
  • Equipped with 20 mm self-tapping screws
Recommendation / Restriction
  • For internal use only.

The product's benefits

Installation
  • The rigidity of the technopolymermakes easy te installation of this support frame on the wall. Possibility to install half step module.
Usage
  • The protective valve, suppliedwith the support frame, allows to protect the devices installed during construction phases while ensuring visibility at the back
Avantages
  • The maximum rigidity of the technopolymer, which makes up this support, makes it easy to install it on the wall
  • The protective valve is supplied to protect the devices during the construction phases while ensuring visibility at the back

Technical characteristics

Width 187 mm
Mounting method Snap mounting
Depth 20 mm
Height 72 mm
Mounting method of the module inserts Front side
Number of modules horizontal (module system) 6
Number of modules vertical (module system) 1
With built-in installation box No
Mounting direction Horizontal and vertical
Suitable for mounting in round junction box 60 mm No
With nail No
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for mounting on DIN-rail 35 mm No
Model Other
Material quality Thermoplastic
Surface protection Untreated
Material Plastic
With screws Yes
Flush-mounted installation Yes

Documentation

1 document
Technical Sheet
F02847EN-00.pdf pdf (0.12 Mo)
