Name: Living Now - 3 modules support frame
SKU: BT-K4703

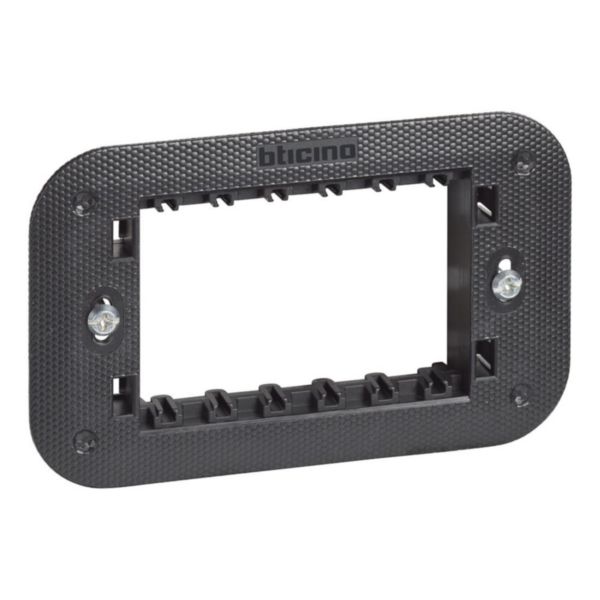

Living Now - 3 modules support frame

Living Now BTICINO

Living Now - 3 modules support frame

REF. BT-K4703 EAN. 8005543611081

Compare You can only compare 4 products, you must remove 1 to add this one

Maximum rigidity of the technopolymer that makes up this support makes it easy to install it on the wall
Possibility of installation at half a step to guarantee maximum installation flexibility
Equipped with protective valve to guarantee a perfect result without scratching or dirtying
3 modules, ultra-rigid black technopolymer
Equipped with 20 mm self-tapping screws

The rigidity of the technopolymermakes easy te installation of this support frame on the wall. Possibility to install half step module.

The protective valve, suppliedwith the support frame, allows to protect the devices installed during construction phases while ensuring visibility at the back

The maximum rigidity of the technopolymer, which makes up this support, makes it easy to install it on the wall
The protective valve is supplied to protect the devices during the construction phases while ensuring visibility at the back

Model	Other
Mounting method	Snap mounting
With nail	No
Depth	19 mm
Height	72 mm
Number of modules horizontal (module system)	3
Number of modules vertical (module system)	1
With built-in installation box	No
With screws	Yes
Width	113 mm

Flush-mounted installation	Yes
Suitable for subfloor installation duct box	No
Suitable for wall duct	No
Mounting direction	Horizontal and vertical
Material	Plastic
Material quality	Thermoplastic
Surface protection	Untreated
Suitable for mounting on DIN-rail 35 mm	No
Mounting method of the module inserts	Front side
Suitable for mounting in round junction box 60 mm	No

Living Now - 3 modules support frame
