Living Now - 2 modules support frame

Living Now BTICINO

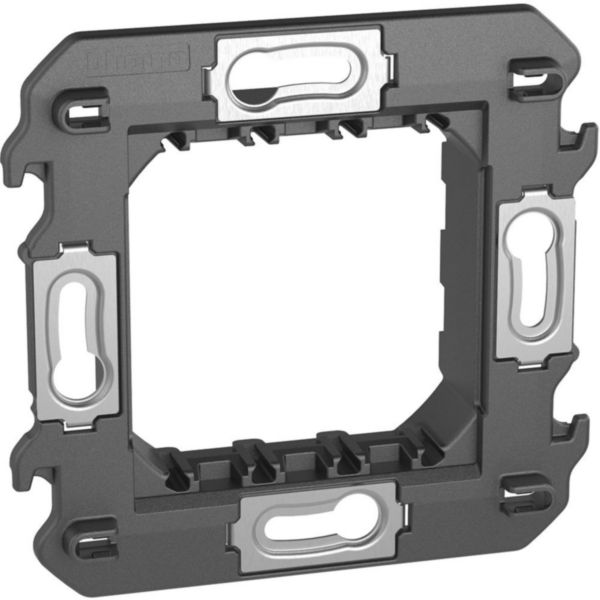

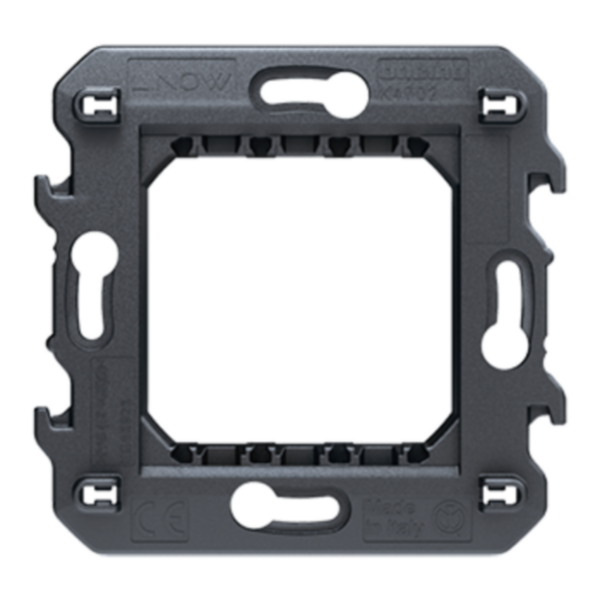

Living Now - 2 modules support frame

REF. BT-K4702 EAN. 8005543615188
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Model Other
Mounting method Snap mounting
With nail No
Depth 18.5 mm
Height 72 mm
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With built-in installation box No
With screws Yes
Width 76 mm
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Mounting direction Horizontal and vertical
Material Plastic
Material quality Thermoplastic
Surface protection Untreated
Suitable for mounting on DIN-rail 35 mm No
Mounting method of the module inserts Front side
Suitable for mounting in round junction box 60 mm Yes

Documentation

1 document
Technical Sheet
F02847EN-00.pdf pdf (0.12 Mo)
2 documents
BIM Data
18 documents
Agreement
Agreement
OC / CB-HU-005630 (0.38 Mo)
Agreement
PEP
LGRP-01904-V01.01-FR.pdf pdf (1.28 Mo)
PEP
Agreement
OC / CB-FR_717744 (0.46 Mo)
PEP
LGRP-01905-V01.01-FR.pdf pdf (1.09 Mo)
PEP
LGRP-01906-V01.01-FR.pdf pdf (1.12 Mo)
Agreement
OC / CB-HU-005073 (0.59 Mo)
Agreement
OC / CB-HU-005071 (0.59 Mo)
PEP
LGRP-01906-V01.01-EN.pdf pdf (1.14 Mo)
PEP
LGRP-01905-V01.01-EN.pdf pdf (1.15 Mo)
PEP
LGRP-01904-V01.01-EN.pdf pdf (1.26 Mo)
Agreement
OC / CB-FR_717747 (0.45 Mo)
PEP
LGRP-01388-V01.01-EN.pdf pdf (0.71 Mo)
Agreement
OC / CB-HU-005165 (0.61 Mo)
Agreement
PEP
LGRP-01357-V01.01-EN.pdf pdf (0.71 Mo)
