Living Now - 1P 2 ways, 10AX, illuminable, 1 module

Living Now BTICINO

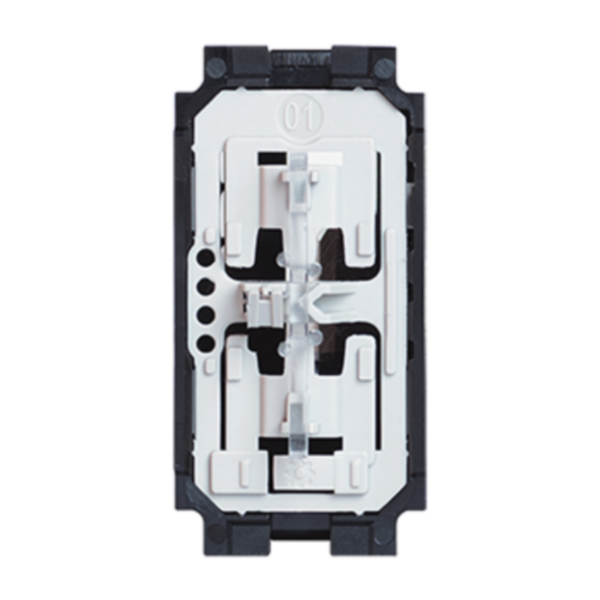

Living Now - 1P 2 ways, 10AX, illuminable, 1 module

REF. BT-K4003 EAN. 8005543610220
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • The mechanism is Full - touch enhancing the ergonomics of the command : it can be operated by pressing the control at any point on its surface (above, below and in the middle)
  • Full touch also means perfect flatness of the control point regardless of the load status
  • Screw and plate terminals
  • Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
  • 10 AX, 250 Va.c. 1P Can be fitted with signaling LED
Recommendation / Restriction
  • For internal use only.

The product's benefits

Installation
  • Further improvement of the installation and removal in the support frame thanks to the new generation of plastic hooks.The reduced depth of this device simplifies wall installation in case of shallow or full of cables boxes.
Usage
  • It can be used as a simple switch able to manage all light loads(LED included).Ergonomics is enhanced thanks to the new Full touch concept: the control can be operated by pressing at any point on its surface.
Avantages
  • The interaction is immediate and thanks to the "full touch" controls, the ergonomics of the button are completely new. In fac it cant be operated in a precise way in any part thereof, at the center, top, or bottom. Once pressed, the key returns to position, remaining always perfectly aligned.
  • The strength of design lies in the essentiality of the form obtained from the search for an absolute flatness between the elements of the switch.
  • You can replace the device cover at any time by changing its color or restoring any damage to the surface without changing the entire device

Technical characteristics

Wiring system Intermediate switch
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch Yes
Mounting method Flush-mounted
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Other
RAL-number (similar) 7015
Colour of switch operator Other
Label space/information surface No
Illumination No
Function lighting Orientation
Type of lighting Other
Suitable for degree of protection (IP) IP20
Degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 10 A
Switching current for fluorescent lamps 10 AX
Feedback-signal contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22 mm
Device height 45 mm
Device depth 34 mm
Built-in depth 32 mm
Min. depth of built-in installation box 42 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature -5-35 °C
Storage temperature -5-35 °C
Voltage type AC
Frequency 50-60 Hz
Mandatory neutral No
Terminal marking indication No
Cable nature for connection Flexible or rigid
Cable section 1.5-2.5 mm²
