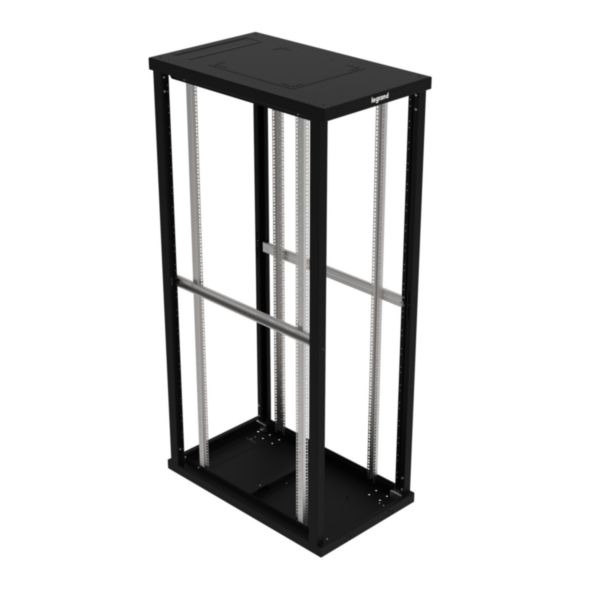

Linkeo 19 inches freestanding cabinet 47U 600x1000mm without doors side panels and tilting bar

Linkeo LEGRAND

Linkeo 19 inches freestanding cabinet 47U 600x1000mm without doors side panels and tilting bar

REF. 446824 EAN. 3414972027366
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Mounting level Front and rear
Type of profile rail None
Number of doors 0
Type of ventilation Passive
Width 600 mm
Height 2189 mm
Depth 1000 mm
Modular spacing 482.6 mm (19 inch)
Number of height units 4
Max. load capacity 1500 kg
With roof plate Yes
With earthing Yes
With front door No
Front door locking system None
With rear door No
Rear door locking system None
With glazed door No
With sidewall No
With base No
With vertical cable management No
Material Steel
Surface finishing Powder coating
Colour Black
Model With permanent frame
RAL-number 9005
Demountable Yes
Degree of protection (IP) IP20
Degree of protection (NEMA) Other
Degree of impact strength (IK) IK02
Operating / setting temperature -25-70 °C

Documentation

2 documents
Technical Sheet
F03351EN-00.pdf pdf (2.63 Mo)
Technical Sheet
F03351FR-00.pdf pdf (2.55 Mo)
2 documents
Catalogue Commercial Page
ex223001_1031.pdf pdf (0.11 Mo)
Catalogue Technical Page
ex223001_1035.pdf pdf (0.04 Mo)
1 document
PEP
LGRP-01457-V01.01-EN.PDF pdf (1.04 Mo)
