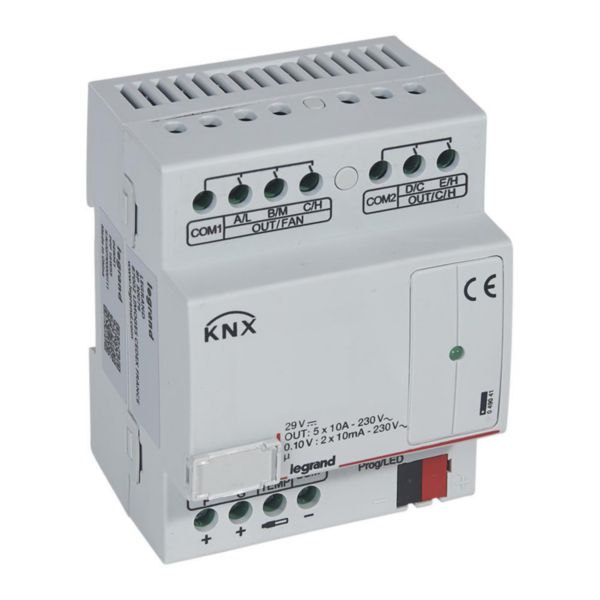

KNX fan coil unit controller 1-10v or on/off 2 pts valves

LEGRAND

KNX fan coil unit controller 1-10v or on/off 2 pts valves

REF. 049041 EAN. 3414970795052
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • 5 channel 10A relay outputs
  • 2 channel 0 - 10V DC outputs
  • 3 Fan speeds : High, Medium, Low
  • Operating voltage supplied by the bus: 21...30 V DC
  • DIN 4 modules
Recommendation / Restriction
  • Configuration through ETS tool from KNX association

The product's benefits

Installation
  • Connected with the BUS/KNX cable
Usage
  • Can be used to control heating floor through up to 5 switching outputs
Avantages
  • Operating mode: Standby, Comfort, Night and Protection according to user’s demands
  • Control based on two-step control or a time-discrete PI controller

Technical characteristics

Bus system KNX Yes
Height 90 mm
Depth 66 mm
Width 72 mm
Mounting method DRA (DIN-rail adapter)
Width in number of modular spacings 4
